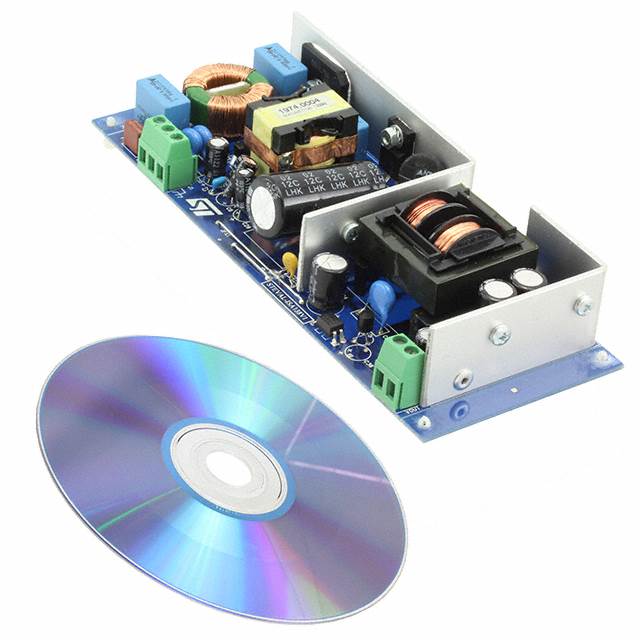

STEVAL-ISA138V1

STMicroelectronics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STEVAL-ISA138V1
Manufacturer/Brand:	STMicroelectronics
Product description	EVAL BOARD ISOL SMPS L6563 L6699
Datasheets:	STEVAL-ISA138V1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	658 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 658 pcs

Reference Price (In US Dollars)

1 pcs: $59.393

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$59.393

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STEVAL-ISA138V1

Part Number	STEVAL-ISA138V1	Manufacturer	STMicroelectronics
Description	EVAL BOARD ISOL SMPS L6563 L6699	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	658 pcs	Data sheet	STEVAL-ISA138V1.pdf
Voltage - Output	19V	Voltage - Input	90 ~ 264 VAC
Utilized IC / Part	L6563H, L6699	Supplied Contents	Board(s)
Series	-	Regulator Topology	Flyback
Power - Output	90W	Outputs and Type	1, Isolated
Other Names	497-14886	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	L6563H, L6699 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board
Current - Output	4.75A	Board Type	Fully Populated
