ESDA12-1K

STMicroelectronics

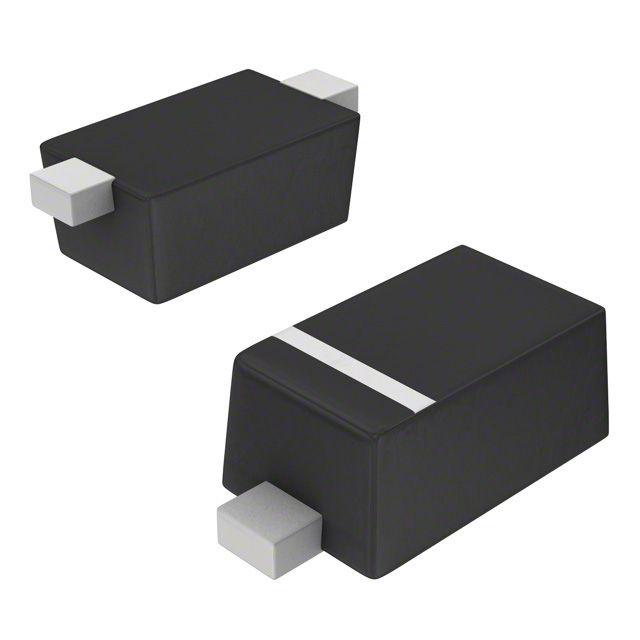

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESDA12-1K
Manufacturer/Brand:	STMicroelectronics
Product description	TVS DIODE 10V 28V SOD523
Datasheets:	ESDA12-1K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1277536 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1277536 pcs

Reference Price (In US Dollars)

3000 pcs: $0.029

6000 pcs: $0.026

15000 pcs: $0.023

30000 pcs: $0.021

75000 pcs: $0.019

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.029

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESDA12-1K

Part Number	ESDA12-1K	Manufacturer	STMicroelectronics
Description	TVS DIODE 10V 28V SOD523	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1277536 pcs	Data sheet	ESDA12-1K.pdf
Voltage - Reverse Standoff (Typ)	10V	Voltage - Clamping (Max) @ Ipp	28V
Voltage - Breakdown (Min)	12V	Unidirectional Channels	1
Type	Zener	Supplier Device Package	SOD-523
Series	ESDA, TRANSIL™	Power Line Protection	No
Power - Peak Pulse	450W	Packaging	Tape & Reel (TR)
Package / Case	SC-79, SOD-523	Other Names	497-10766-2 ESDA121K
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	16A (8/20µs)
Capacitance @ Frequency	150pF @ 1MHz	Base Part Number	ESDA1*-1K
Applications	General Purpose

Shipment
After-Sales
Datasheets

★ FREE SHIPPING VIA DHL/FEDEX/UPS IF ORDER AMOUNT OVER 1,000 USD.
(ONLY FOR Integrated Circuits, Circuit Protection, RF/IF and RFID, Optoelectronics, Sensors, Transducers, Transformers, Isolators, Switches, Relays)

FEDEX	www.FedEx.com	From $35.00 basic shipping fee depend on zone and country.
DHL	www.DHL.com	From $35.00 basic shipping fee depend on zone and country.
UPS	www.UPS.com	From $35.00 basic shipping fee depend on zone and country.
TNT	www.TNT.com	From $35.00 basic shipping fee depend on zone and country.

★ Delivery time will need 2-4 Days to most of country all over the world by DHL/UPS/FEDEX/TNT.

Please feel free to contact us if you have any questions about the shipment. E-mail us [email protected]

AFTER-SALES GUARANTEE

Each product from Ocean-Components.com has been given a warranty period of 1 YEAR .During this period , we could provide free technical maintenance if there are any problems about our products.
If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.
If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.
