DF2317VTEBL25V

Renesas Electronics America

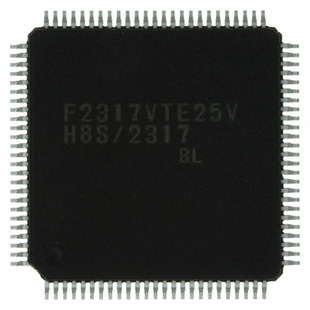

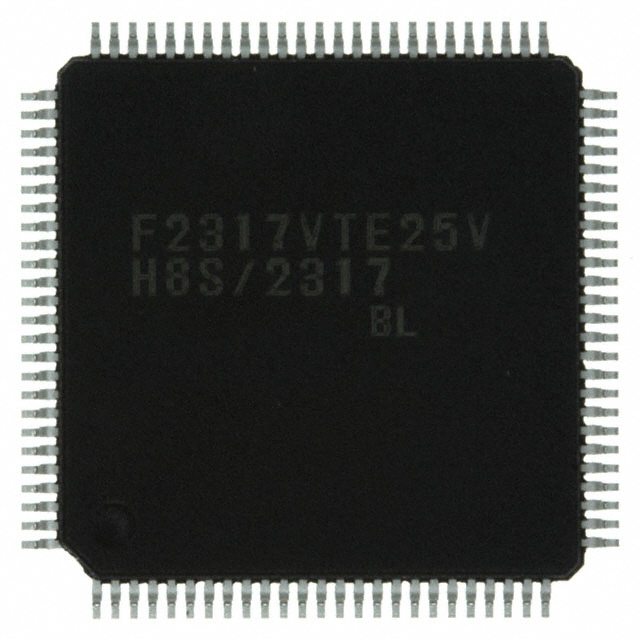

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DF2317VTEBL25V
Manufacturer/Brand:	Renesas Electronics America
Product description	IC MCU 16BIT 128KB FLASH 100TQFP
Datasheets:	DF2317VTEBL25V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15549 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15549 pcs

Reference Price (In US Dollars)

1 pcs: $4.559

10 pcs: $4.102

90 pcs: $3.737

180 pcs: $3.372

270 pcs: $3.099

540 pcs: $2.825

1080 pcs: $2.461

2520 pcs: $2.37

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.559

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DF2317VTEBL25V

Part Number	DF2317VTEBL25V	Manufacturer	Renesas Electronics America
Description	IC MCU 16BIT 128KB FLASH 100TQFP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15549 pcs	Data sheet	DF2317VTEBL25V.pdf
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 3.6 V	Supplier Device Package	100-TQFP (14x14)
Speed	25MHz	Series	H8® H8S/2300
RAM Size	8K x 8	Program Memory Type	FLASH
Program Memory Size	128KB (128K x 8)	Peripherals	POR, PWM, WDT
Packaging	Tray	Package / Case	100-TQFP
Other Names	HD64F2317VTEBL25V	Oscillator Type	Internal
Operating Temperature	-20°C ~ 75°C (TA)	Number of I/O	70
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	EEPROM Size	-
Detailed Description	H8S/2000 H8® H8S/2300 Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 100-TQFP (14x14)	Data Converters	A/D 8x10b; D/A 2x8b
Core Size	16-Bit	Core Processor	H8S/2000
Connectivity	SCI, SmartCard	Base Part Number	DF2317
