PH9455.155NL

Pulse Electronics Corporation

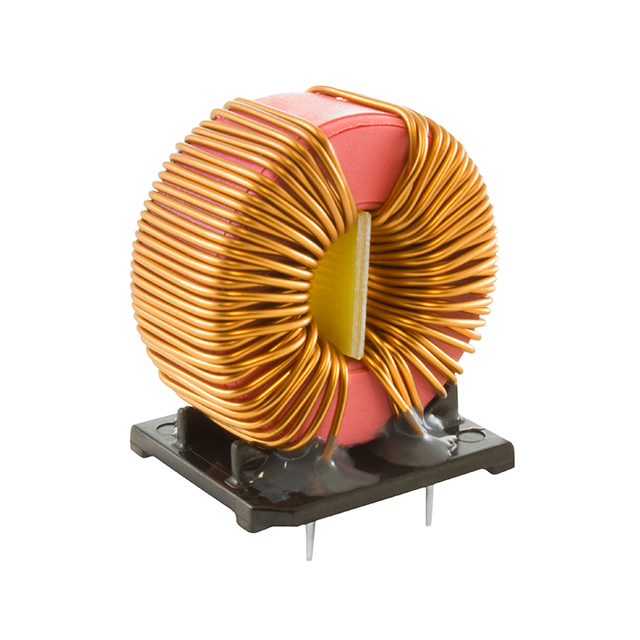

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PH9455.155NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CMC 1.62MH 19A 2LN 1.8 KOHM TH
Datasheets:	PH9455.155NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24816 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24816 pcs

Reference Price (In US Dollars)

1 pcs: $2.746

45 pcs: $2.198

135 pcs: $1.758

540 pcs: $1.648

1035 pcs: $1.538

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.746

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PH9455.155NL

Part Number	PH9455.155NL	Manufacturer	Pulse Electronics Corporation
Description	CMC 1.62MH 19A 2LN 1.8 KOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24816 pcs	Data sheet	PH9455.155NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.181" L x 0.748" W (30.00mm x 19.00mm)	Series	-
Ratings	-	Packaging	Tube
Package / Case	Vertical, 4 PC Pin	Other Names	553-3958 PH9455.155NL-ND
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1.62mH @ 10MHz	Impedance @ Frequency	1.8 kOhms @ 10MHz
Height (Max)	1.102" (28.00mm)	Filter Type	-
Features	-	Detailed Description	1.62mH @ 10MHz 2 Line Common Mode Choke Through Hole 1.8 kOhms @ 10MHz 19A DCR 3.2 mOhm
DC Resistance (DCR) (Max)	3.2 mOhm	Current Rating (Max)	19A
Approvals	-
