PF0552.103NLT

Pulse Electronics Corporation

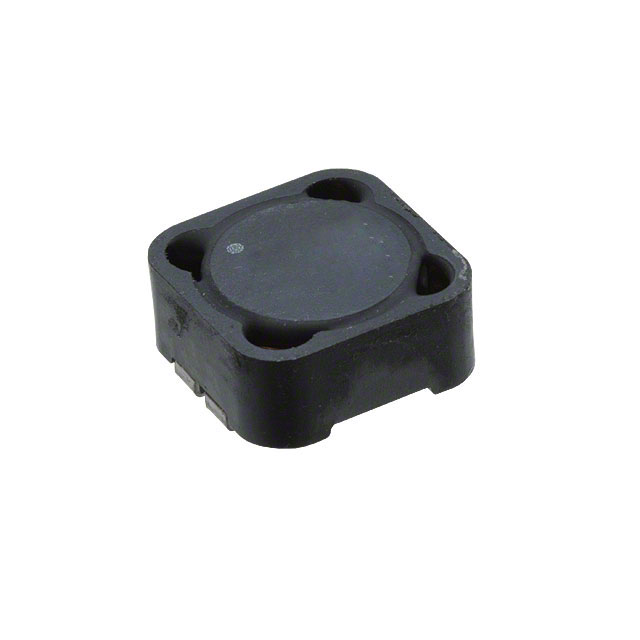

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PF0552.103NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCT ARRAY 2 COIL 9.7UH SMD
Datasheets:	PF0552.103NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63323 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 63323 pcs

Reference Price (In US Dollars)

2000 pcs: $0.344

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.344

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PF0552.103NLT

Part Number	PF0552.103NLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCT ARRAY 2 COIL 9.7UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63323 pcs	Data sheet	PF0552.103NLT.pdf
Tolerance	±20%	Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Shielding	Shielded	Series	PF0552NL
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Number of Coils	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	39µH
Inductance - Connected In Parallel	9.7µH	Height	0.236" (6.00mm)
Detailed Description	Shielded 2 Coil Inductor Array 39µH Inductance - Connected in Series 9.7µH Inductance - Connected in Parallel 19 mOhm Max DC Resistance (DCR) - Parallel 6A Nonstandard	DC Resistance (DCR) - Series	73 mOhm Max
DC Resistance (DCR) - Parallel	19 mOhm Max	Current Saturation - Series	3.6A
Current Saturation - Parallel	7.2A	Current Rating - Series	3A
Current Rating - Parallel	6A
