PE-64488NL

Pulse Electronics Corporation

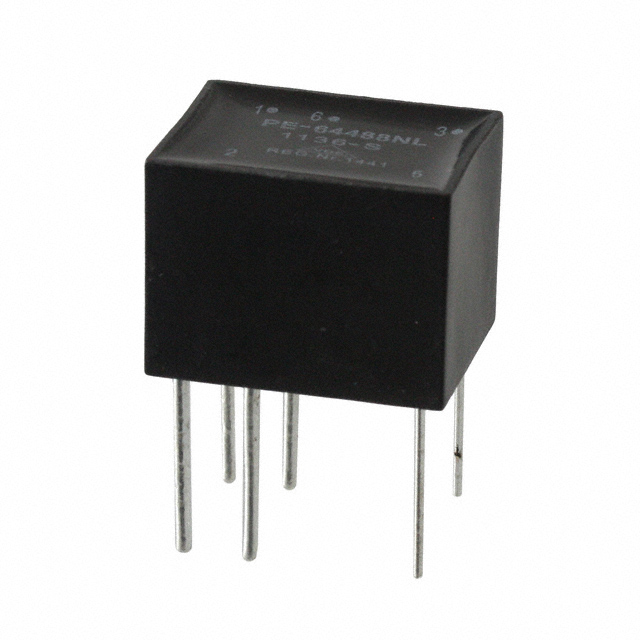

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-64488NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 20A T/H
Datasheets:	PE-64488NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29342 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29342 pcs

Reference Price (In US Dollars)

1 pcs: $1.943

10 pcs: $1.475

45 pcs: $1.437

90 pcs: $1.32

135 pcs: $1.242

270 pcs: $1.204

540 pcs: $1.165

1035 pcs: $1.126

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.943

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-64488NL

Part Number	PE-64488NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 20A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29342 pcs	Data sheet	PE-64488NL.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.900" L x 0.700" W (22.86mm x 17.78mm)	Series	THT
Ratings	-	Packaging	Tray
Other Names	553-1740 PE-64488NL-ND PE64488NL	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	80mH
Height - Seated (Max)	0.700" (17.78mm)	Frequency Range	20kHz ~ 200kHz
Energy Time (E.T.)	-	Detailed Description	20A Current Sense Transformer 20kHz ~ 200kHz 200 Ohm Primary, 4.5 Ohm Secondary 80mH Through Hole
DC Resistance (DCR)	200 Ohm Primary, 4.5 Ohm Secondary	Current Ratio	200:1
Current Rating	20A
