PA4343.822ANLT

Pulse Electronics Corporation

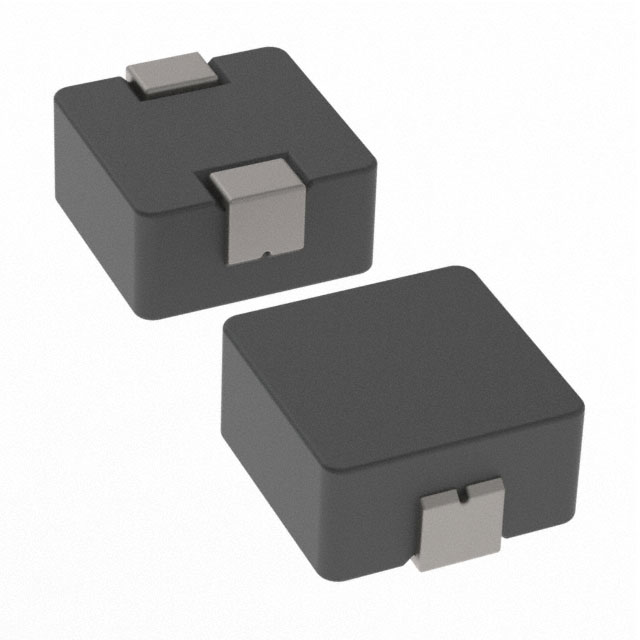

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4343.822ANLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCTOR 8.2 UH SMT 14.0 X 12.8
Datasheets:	PA4343.822ANLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	67461 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 67461 pcs

Reference Price (In US Dollars)

500 pcs: $0.372

1000 pcs: $0.339

2500 pcs: $0.328

5000 pcs: $0.317

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4343.822ANLT

Part Number	PA4343.822ANLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCTOR 8.2 UH SMT 14.0 X 12.8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	67461 pcs	Data sheet	PA4343.822ANLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.531" L x 0.496" W (13.50mm x 12.60mm)
Shielding	Shielded	Series	PA4343.XXXANLT
Ratings	AEC-Q200	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	553-4028-2	Operating Temperature	-55°C ~ 155°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	8.2µH	Height - Seated (Max)	0.256" (6.50mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	8.2µH Shielded Molded Inductor 12.5A 13.8 mOhm Max Nonstandard	DC Resistance (DCR)	13.8 mOhm Max
Current Rating	12.5A	Current - Saturation	17A
