PA1294.112NLT

Pulse Electronics Corporation

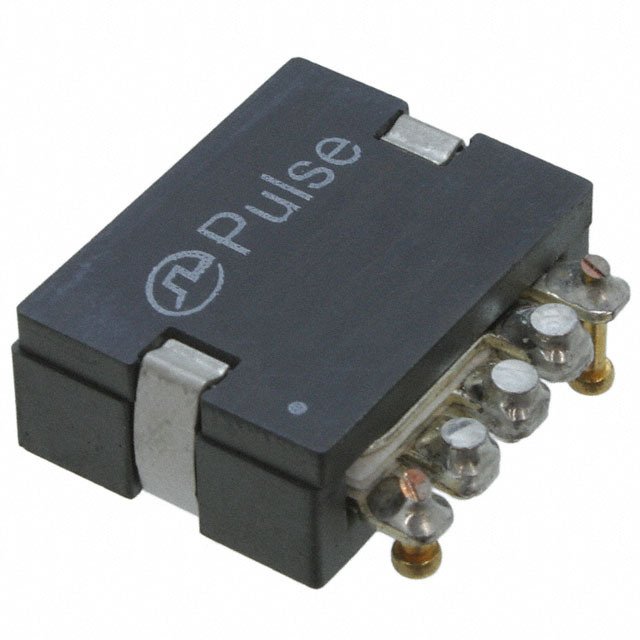

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA1294.112NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 1.1UH 30A 0.48 MOHM
Datasheets:	PA1294.112NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35163 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35163 pcs

Reference Price (In US Dollars)

750 pcs: $0.978

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.978

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA1294.112NLT

Part Number	PA1294.112NLT	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 1.1UH 30A 0.48 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35163 pcs	Data sheet	PA1294.112NLT.pdf
Type	Planar	Tolerance	±15%
Supplier Device Package	-	Size / Dimension	0.780" L x 0.770" W (19.81mm x 19.56mm)
Shielding	Shielded	Series	PA1294NL
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	1.1µH	Height - Seated (Max)	0.290" (7.37mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	1.1µH Shielded Planar Inductor 30A 0.48 mOhm Max Nonstandard	DC Resistance (DCR)	0.48 mOhm Max
Current Rating	30A	Current - Saturation	35A
