P5005NL

Pulse Electronics Corporation

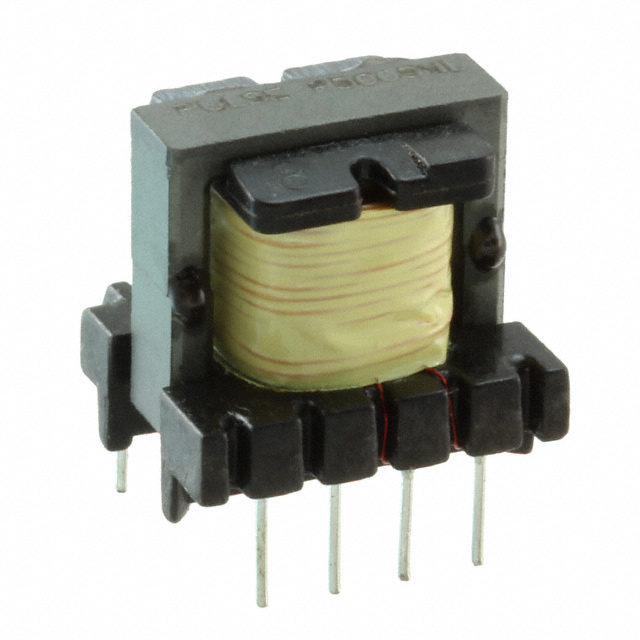

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P5005NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1:0.1:0.1
Datasheets:	P5005NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	61691 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 61691 pcs

Reference Price (In US Dollars)

1 pcs: $1.051

10 pcs: $0.851

40 pcs: $0.688

80 pcs: $0.645

120 pcs: $0.616

280 pcs: $0.597

520 pcs: $0.579

1000 pcs: $0.561

5000 pcs: $0.516

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.051

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P5005NL

Part Number	P5005NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1:0.1:0.1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61691 pcs	Data sheet	P5005NL.pdf
Turns Ratio - Primary:Secondary	1:0.1:0.1	Transformer Type	-
Size / Dimension	0.717" L x 0.630" W (18.20mm x 16.00mm)	Series	-
Operating Temperature	-30°C ~ 110°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	-
Height - Seated (Max)	0.697" (17.70mm)	Energy Time (E.T.)	-
