JD1-0003NL

Pulse Electronics Corporation

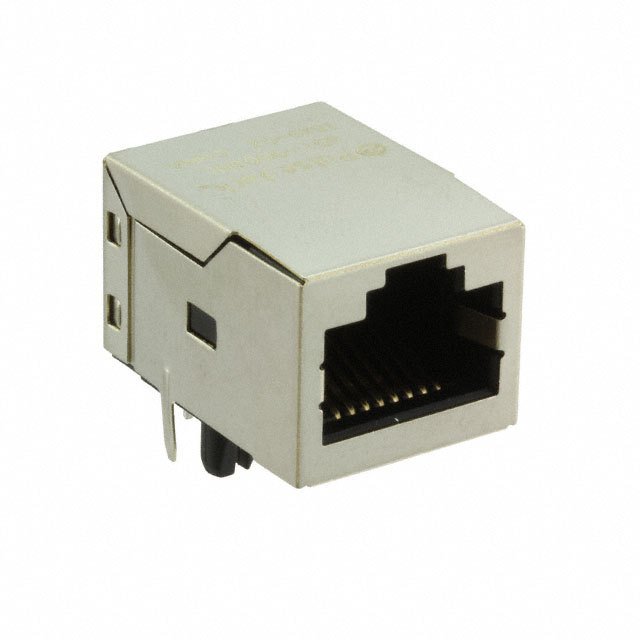

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JD1-0003NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN MAGJACK 1PORT 100 BASE-TX
Datasheets:	JD1-0003NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47196 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 47196 pcs

Reference Price (In US Dollars)

1 pcs: $1.489

10 pcs: $1.428

25 pcs: $1.309

50 pcs: $1.249

100 pcs: $1.19

250 pcs: $1.041

500 pcs: $1.011

1000 pcs: $0.863

2500 pcs: $0.803

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.489

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JD1-0003NL

Part Number	JD1-0003NL	Manufacturer	Pulse Electronics Corporation
Description	CONN MAGJACK 1PORT 100 BASE-TX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47196 pcs	Data sheet	JD1-0003NL.pdf
Termination	Solder	Tab Direction	Up
Shielding	Shielded	Shield Material	Brass
Series	PULSEJACK™ JD1	Packaging	Tray
Other Names	553-2606	Orientation	90° Angle (Right)
Operating Temperature	0°C ~ 70°C	Number of Rows	1
Number of Ports	1	Number of Cores per Jack	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
LED Color	Does Not Contain LED	Housing Material	Thermoplastic
Height Above Board	0.543" (13.80mm)	Features	Board Lock
Detailed Description	1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX	Contact Material	Copper Alloy
Contact Finish Thickness	6.00µin (0.152µm)	Contact Finish	Gold
Connector Type	RJ45	Applications	10/100 Base-TX, AutoMDIX
