H5009NL

Pulse Electronics Corporation

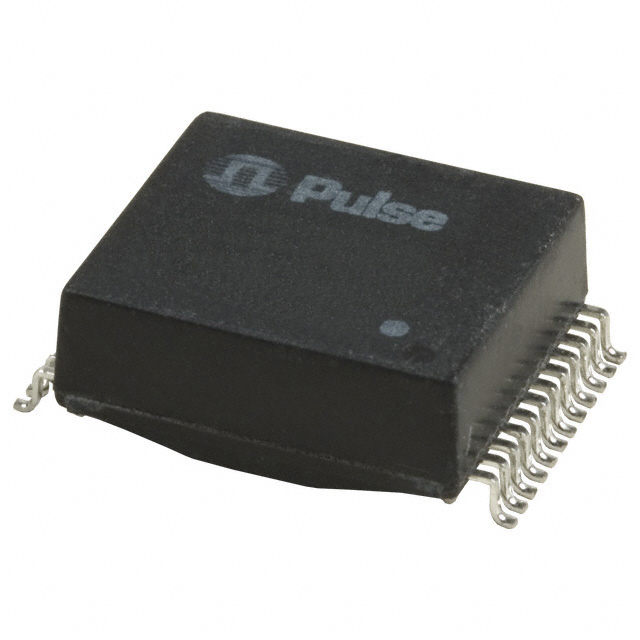

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H5009NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	MODULE XFORMR GIGABIT SINGLE LAN
Datasheets:	H5009NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5929 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5929 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H5009NL

Part Number	H5009NL	Manufacturer	Pulse Electronics Corporation
Description	MODULE XFORMR GIGABIT SINGLE LAN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5929 pcs	Data sheet	H5009NL.pdf
Weight	0.06 oz (1.71g)	Turns Ratio - Primary:Secondary	1:1
Transformer Type	Isolation and Data Interface (Encapsulated)	Size / Dimension	0.537" L x 0.600" W (13.64mm x 15.24mm)
Series	-	Packaging	Tube
Other Names	553-1605-5 H5009NL-ND	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	-
Height - Seated (Max)	0.235" (5.97mm)	Energy Time (E.T.)	-
