H1197NL

Pulse Electronics Corporation

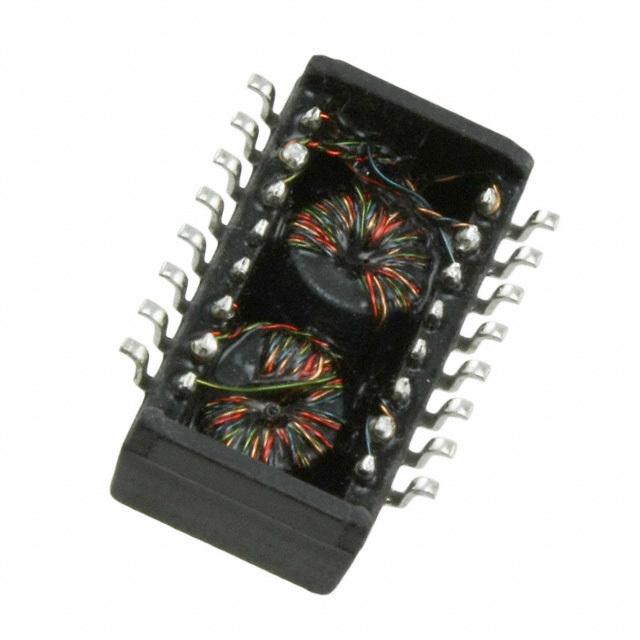

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H1197NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFRMR MAGNT MOD 1PORT POE 10/100
Datasheets:	1.H1197NL.pdf 2.H1197NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38037 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38037 pcs

Reference Price (In US Dollars)

1 pcs: $1.726

10 pcs: $1.399

40 pcs: $1.131

80 pcs: $1.06

120 pcs: $1.012

280 pcs: $0.982

520 pcs: $0.953

1000 pcs: $0.923

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.726

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H1197NL

Part Number	H1197NL	Manufacturer	Pulse Electronics Corporation
Description	XFRMR MAGNT MOD 1PORT POE 10/100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38037 pcs	Data sheet	1.H1197NL.pdf 2.H1197NL.pdf
Weight	0.02 oz (0.57g)	Turns Ratio - Primary:Secondary	1CT:1CT
Transformer Type	Isolation and Data Interface (Encapsulated)	Size / Dimension	0.500" L x 0.265" W (12.70mm x 6.73mm)
Series	-	Packaging	Tube
Other Names	553-1623-5 H1197NL-ND	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	-	Height - Seated (Max)	0.245" (6.22mm)
Energy Time (E.T.)	-
