Preci-Dip

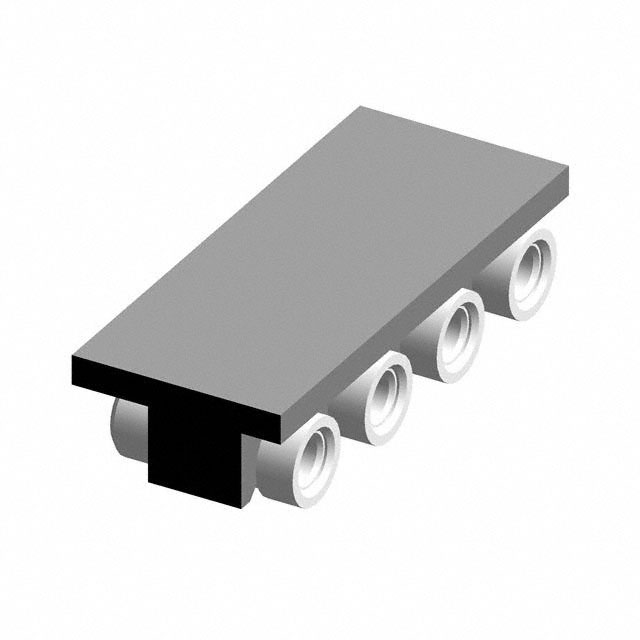

| Part Number | 8FM-78-0004-02-278191 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | SMD SOCKET LOW PRO SINGLE ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89601 pcs | Data sheet | 1.8FM-78-0004-02-278191.pdf2.8FM-78-0004-02-278191.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 8FM |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 1212-1381-2 8FM78000402278191 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.096" (2.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Socket Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Socket |
| Applications | - |
