Preci-Dip

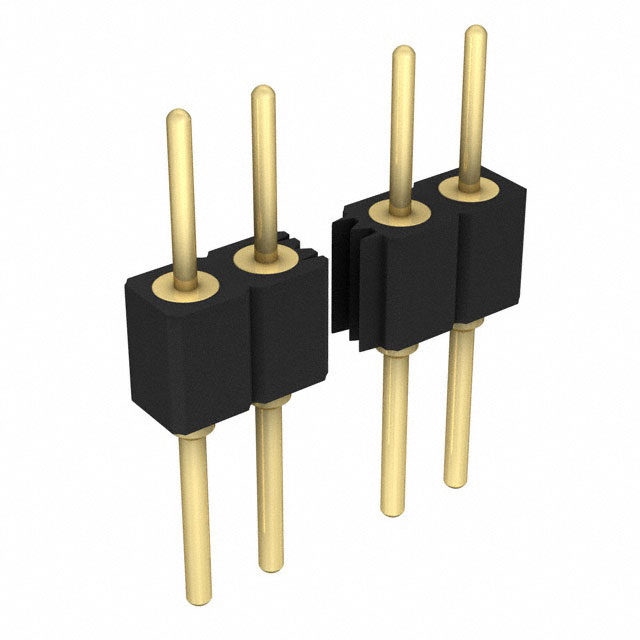

| Part Number | 350-10-142-00-013101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | CONN HDR 42POS T/H 0.100 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24563 pcs | Data sheet | 350-10-142-00-013101.pdf |
| Voltage Rating | 150VDC | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 350 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.416" (10.57mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 42 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.116" (2.95mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 42 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.121" (3.08mm) | Contact Length - Mating | 0.134" (3.39mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
