Phoenix Contact
| Part Number | 1937538 | Manufacturer | Phoenix Contact |
|---|---|---|---|

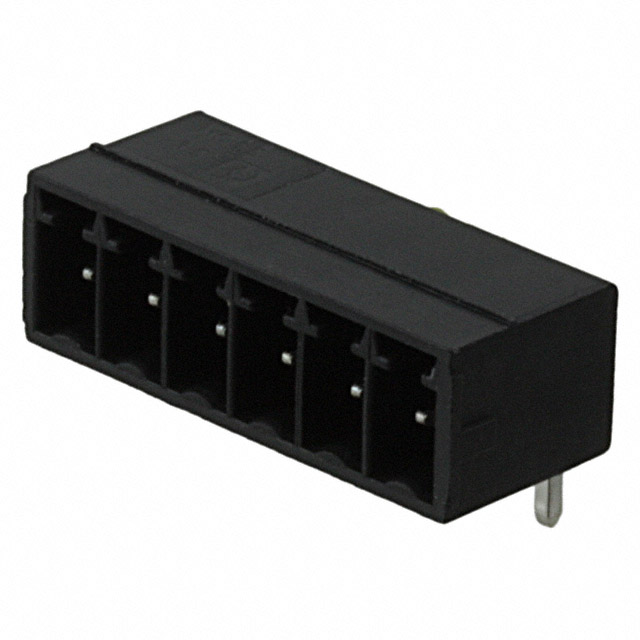

| Description | TERM BLOCK HDR 6POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3973 pcs | Data sheet | 1937538.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON MC | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1937538-ND 277-6878 MC 1.5/ 6-G-3.5-THT MC1.5/6-G-3.5-THT |
Operating Temperature | - |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.285" (7.25mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole |
| Current - UL | 8A | Current - IEC | 8A per Position |
| Contact Tail Length | 0.134" (3.40mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
