Phoenix Contact

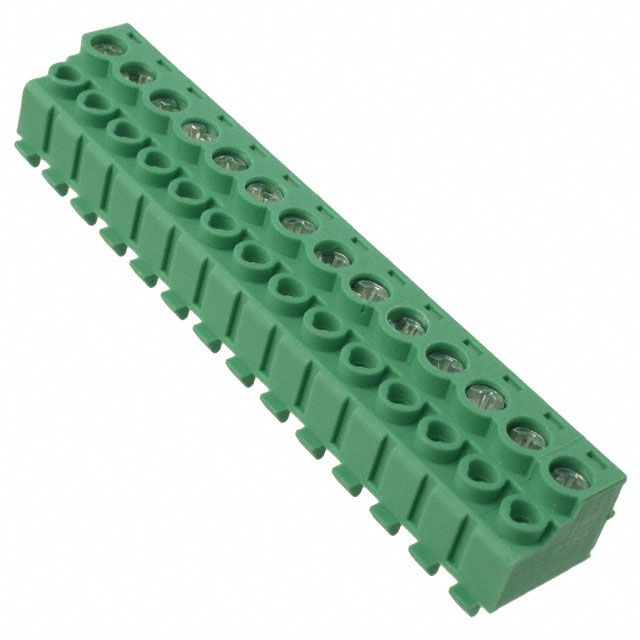

| Part Number | 1755855 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 14POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38744 pcs | Data sheet | 1755855.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 14-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 630V | Type | Plug for Unshrouded Header |
| Torque - Screw | 0.35-0.4 Nm (3.1-3.5 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON PT | Screw Size | - |
| Positions Per Level | 14 | Plug Wire Entry | 90° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 277-2258 PT 1.5/14-PH-5.0 CLIP PT1,5/14-PH-5,0CLIP |
Operating Temperature | - |
| Number of Positions | 14 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.484" (12.30mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 14 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 10A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
