Phoenix Contact

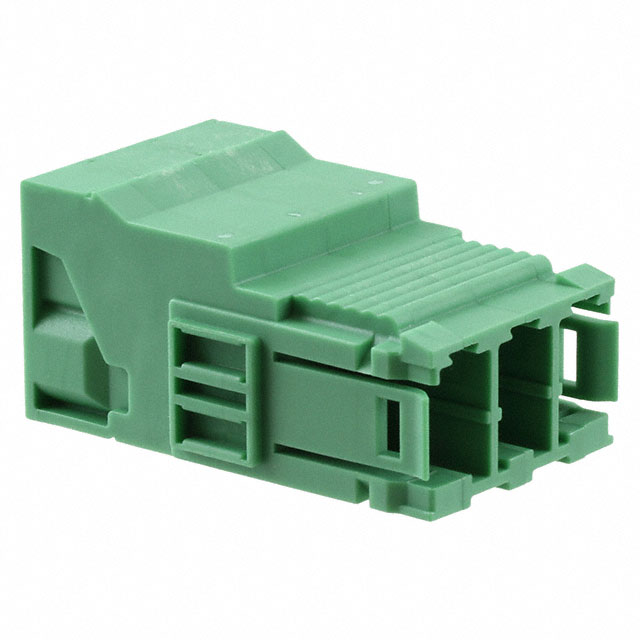

| Part Number | 1748875 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19781 pcs | Data sheet | 1748875.pdf |
| Wire Strip Length | 15mm | Wire Gauge or Range - mm² | 0.2-10mm² |
| Wire Gauge or Range - AWG | 8-24 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Male Pins |
| Torque - Screw | - | Termination Style | Screwless - Push-In Spring |
| Series | COMBICON ISPC | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | 180° |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 1748875-ND 277-13889 ISPC5/3-STGCL-7,62 ISPC53STGCL762 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.780" (19.80mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Locking Ramp |
| Detailed Description | 3 Position Terminal Block Plug, Male Pins 0.300" (7.62mm) 180° Free Hanging (In-Line) | Current - UL | 35A |
| Current - IEC | 41A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
