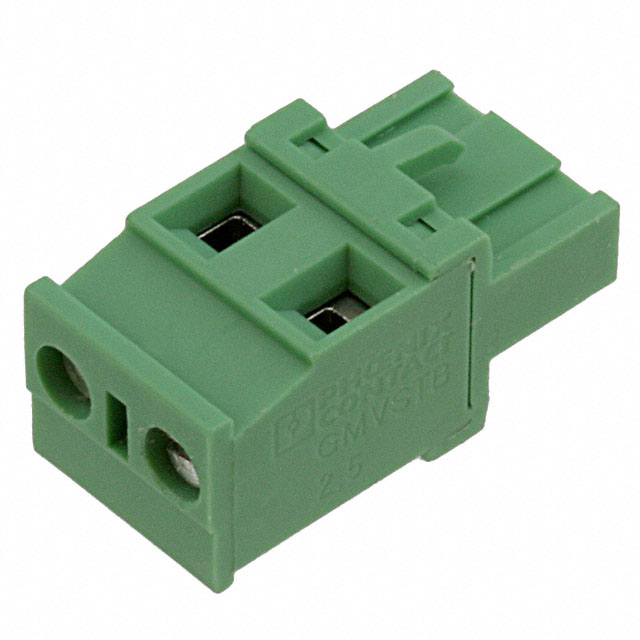

Phoenix Contact
| Part Number | 1737709 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS 90DEG 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39979 pcs | Data sheet | 1737709.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 1kV | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON GMVSTBR | Screw Size | M3 |
| Positions Per Level | 2 | Plug Wire Entry | 90° |
| Pitch | 0.295" (7.50mm) | Packaging | Bulk |
| Other Names | 1737709-ND 277-6379 GMVSTBR 2,5/ 2-ST GMVSTBR2,5/2-ST |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.024" (26.01mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches (Wire Side) |
| Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 90° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
