Phoenix Contact

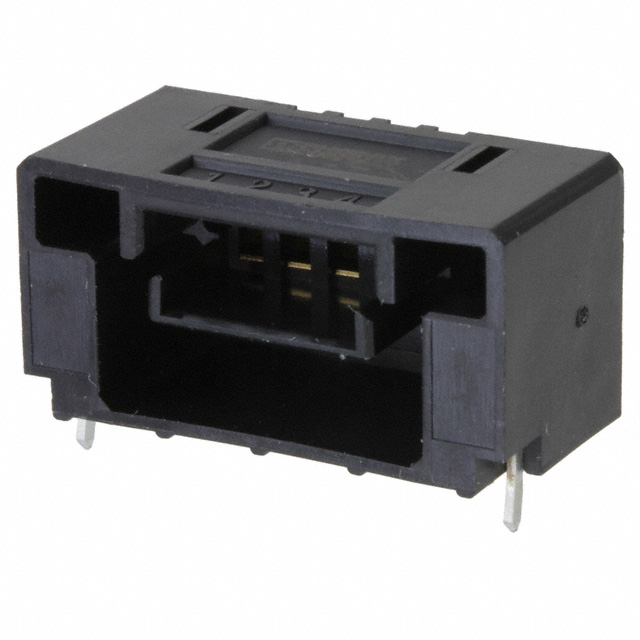

| Part Number | 1701362 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN HEADER 4POS 5A BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20379 pcs | Data sheet | 1701362.pdf |
| Voltage Rating | 160V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | COMBICON HD | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 1701362-ND 277-8561 CIOC4-1-LIH CIOC41LIH |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.512" (13.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
