TX2SA-L2-3V

Panasonic

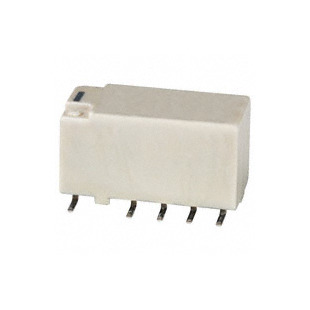

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TX2SA-L2-3V
Manufacturer/Brand:	Panasonic
Product description	RELAY TELECOM DPDT 2A 220V
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36680 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 36680 pcs

Reference Price (In US Dollars)

1 pcs: $1.656

10 pcs: $1.552

40 pcs: $1.379

80 pcs: $1.31

120 pcs: $1.241

280 pcs: $1.103

520 pcs: $1.034

1000 pcs: $0.965

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.656

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TX2SA-L2-3V

Part Number	TX2SA-L2-3V	Manufacturer	Panasonic
Description	RELAY TELECOM DPDT 2A 220V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36680 pcs	Data sheet
Turn On Voltage (Max)	2.25 VDC	Turn Off Voltage (Min)	-
Termination Style	Gull Wing	Switching Voltage	220VDC - Max
Series	TX	Release Time	4ms
Relay Type	Telecom	Packaging	Tube
Other Names	255-2306-5 TX2SA-L2-3V-ND TX2SAL23V	Operating Temperature	-40°C ~ 85°C
Operate Time	4ms	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	4 (72 Hours)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Detailed Description	Telecom Relay DPDT (2 Form C) Surface Mount	Contact Rating (Current)	2A
Contact Material	Silver (Ag), Gold (Au)	Contact Form	DPDT (2 Form C)
Coil Voltage	3VDC	Coil Type	Latching, Dual Coil
Coil Resistance	45 Ohms	Coil Power	200 mW
Coil Current	66.7mA
