MA4X159A0L

Panasonic

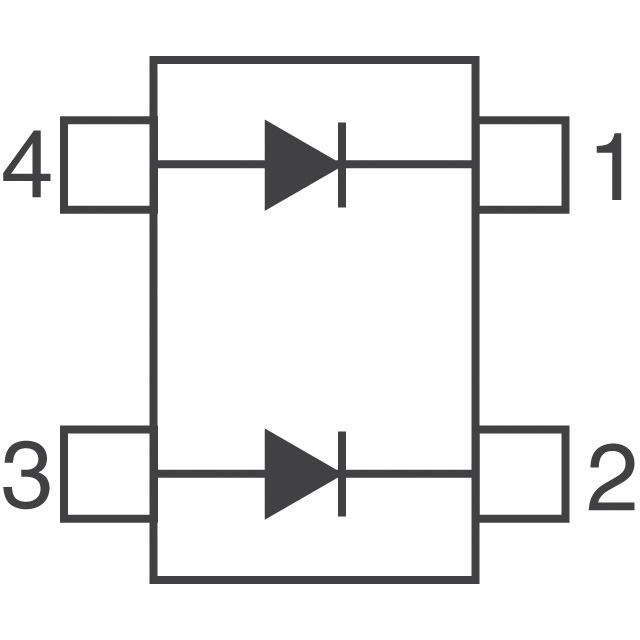

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MA4X159A0L
Manufacturer/Brand:	Panasonic
Product description	DIODE ARRAY GP 80V 100MA MINI4
Datasheets:	MA4X159A0L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4008 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4008 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MA4X159A0L

Part Number	MA4X159A0L	Manufacturer	Panasonic
Description	DIODE ARRAY GP 80V 100MA MINI4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4008 pcs	Data sheet	MA4X159A0L.pdf
Voltage - Forward (Vf) (Max) @ If	1.2V @ 100mA	Voltage - DC Reverse (Vr) (Max)	80V
Supplier Device Package	Mini4-G1	Speed	Small Signal =< 200mA (Io), Any Speed
Series	-	Reverse Recovery Time (trr)	3ns
Packaging	Tape & Reel (TR)	Package / Case	TO-253-4, TO-253AA
Other Names	MA159A-(TX) MA159A-TX MA159ATR MA159ATR-ND MA4X159A0LTR	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	2 Independent	Detailed Description	Diode Array 2 Independent Standard 80V 100mA (DC) Surface Mount TO-253-4, TO-253AA
Current - Reverse Leakage @ Vr	100nA @ 75V	Current - Average Rectified (Io) (per Diode)	100mA (DC)
Base Part Number	MA4X159
