LNJ757W86RA

Panasonic

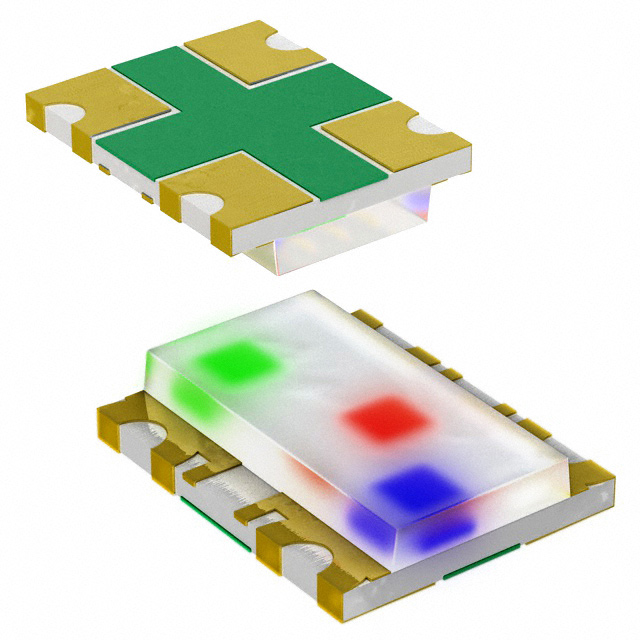

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LNJ757W86RA
Manufacturer/Brand:	Panasonic
Product description	LED RGB CHIP 628NM 525 470NM SMD
Datasheets:	LNJ757W86RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	110338 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 110338 pcs

Reference Price (In US Dollars)

5000 pcs: $0.179

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.179

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LNJ757W86RA

Part Number	LNJ757W86RA	Manufacturer	Panasonic
Description	LED RGB CHIP 628NM 525 470NM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	110338 pcs	Data sheet	LNJ757W86RA.pdf
Wavelength - Peak	643nm Red, 520nm Green, 462nm Blue	Wavelength - Dominant	628nm Red, 525nm Green, 470nm Blue
Voltage - Forward (Vf) (Typ)	1.9V Red, 3V Green, 2.95V Blue	Viewing Angle	-
Supplier Device Package	Chip LED	Size / Dimension	1.30mm L x 1.05mm W
Series	-	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Other Names	P16825TR
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	30mcd Red, 90mcd Green, 15mcd Blue	Lens Transparency	-
Lens Style/Size	Rectangle with Flat Top, 1.30mm x 0.70mm	Lens Color	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	0.35mm
Features	-	Detailed Description	Red, Green, Blue (RGB) 628nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3V Green, 2.95V Blue 4-SMD, No Lead
Current - Test	5mA Red, 5mA Green, 5mA Blue	Configuration	Common Anode
Color	Red, Green, Blue (RGB)	Base Part Number	LNJ757
