LKT1AF-9V

Panasonic

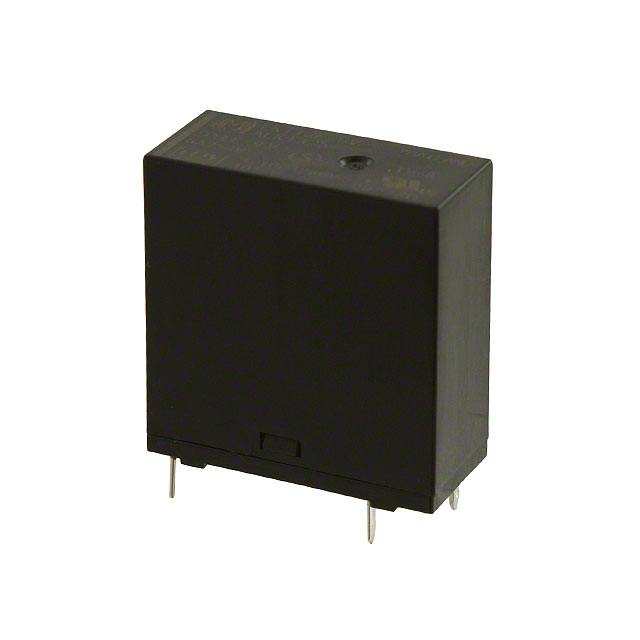

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LKT1AF-9V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 5A 9V
Datasheets:	LKT1AF-9V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58988 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 58988 pcs

Reference Price (In US Dollars)

1 pcs: $0.631

10 pcs: $0.591

25 pcs: $0.525

50 pcs: $0.499

100 pcs: $0.473

300 pcs: $0.42

500 pcs: $0.394

1000 pcs: $0.368

5000 pcs: $0.355

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.631

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LKT1AF-9V

Part Number	LKT1AF-9V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 5A 9V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58988 pcs	Data sheet	LKT1AF-9V.pdf
Turn On Voltage (Max)	6.3 VDC	Turn Off Voltage (Min)	0.9 VDC
Termination Style	PC Pin	Switching Voltage	277VAC - Max
Series	LK-T	Release Time	5ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-3500 LKT1AF9V	Operating Temperature	-40°C ~ 70°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole	Contact Rating (Current)	5A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	9VDC	Coil Type	Non Latching
Coil Resistance	324 Ohms	Coil Power	250 mW
Coil Current	27.8mA
