LKG1AF-12V-16

Panasonic

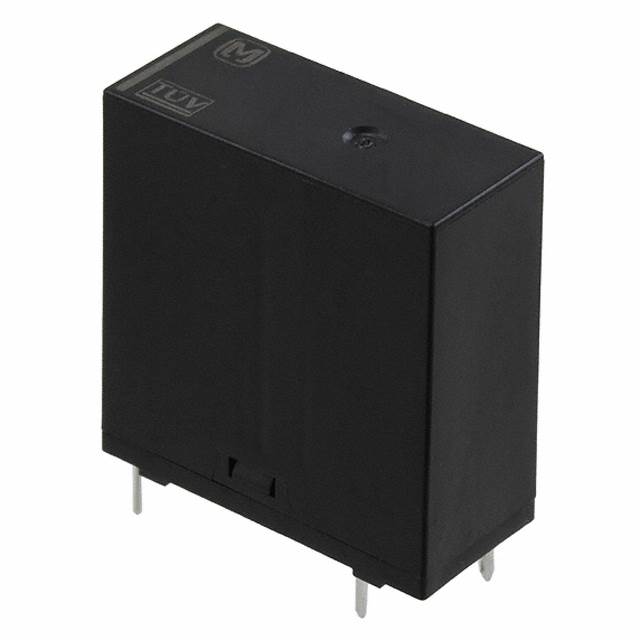

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LKG1AF-12V-16
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 16A 12V
Datasheets:	LKG1AF-12V-16.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	83382 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 83382 pcs

Reference Price (In US Dollars)

1 pcs: $0.831

20 pcs: $0.78

40 pcs: $0.693

60 pcs: $0.659

100 pcs: $0.624

260 pcs: $0.555

500 pcs: $0.52

1000 pcs: $0.485

5000 pcs: $0.468

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.831

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LKG1AF-12V-16

Part Number	LKG1AF-12V-16	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 16A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	83382 pcs	Data sheet	LKG1AF-12V-16.pdf
Turn On Voltage (Max)	9 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	PC Pin	Switching Voltage	277VAC - Max
Series	LK-G	Release Time	20ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-4006-5 LKG1AF-12V-16-ND LKG1AF12V16	Operating Temperature	-40°C ~ 70°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole	Contact Rating (Current)	16A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	272 Ohms	Coil Power	530 mW
Coil Current	44.2mA
