Panasonic

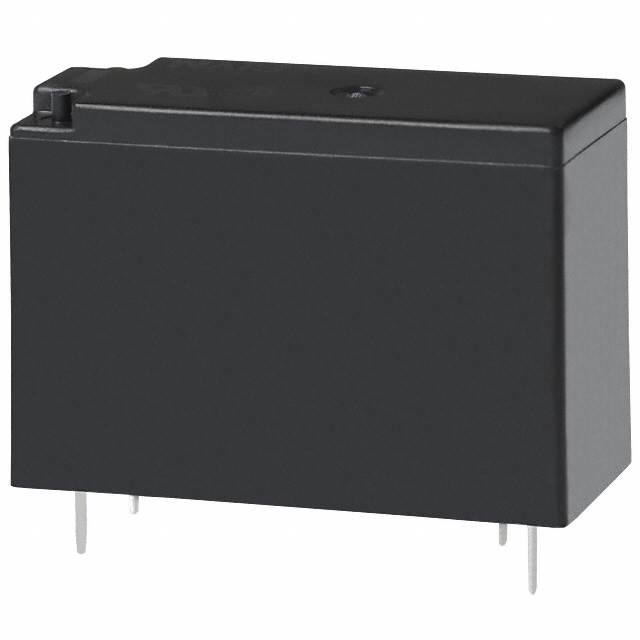

| Part Number | JW2SN-DC12V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 5A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50214 pcs | Data sheet | JW2SN-DC12V.pdf |
| Turn On Voltage (Max) | 8.4 VDC | Turn Off Voltage (Min) | 1.2 VDC |
| Termination Style | PC Pin | Switching Voltage | 250VAC, 30VDC - Max |
| Series | JW | Release Time | 5ms |
| Relay Type | General Purpose | Packaging | Tray |
| Other Names | 255-1117 JW2EN-DC12V JW2SNDC12V |
Operating Temperature | -40°C ~ 60°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole | Contact Rating (Current) | 5A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 270 Ohms | Coil Power | 530 mW |
| Coil Current | 44.0mA |
