Panasonic

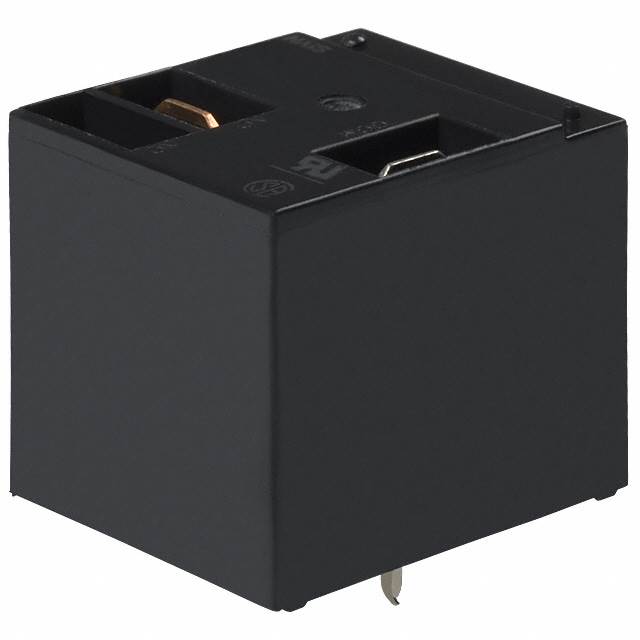

| Part Number | JTN1AS-TMP-F-DC18V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 30A 18V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39448 pcs | Data sheet | JTN1AS-TMP-F-DC18V.pdf |
| Turn On Voltage (Max) | 13.5 VDC | Turn Off Voltage (Min) | 1.8 VDC |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) | Switching Voltage | 277VAC - Max |
| Series | JT-N | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | 255-3687 JTN1AS-TMP-FDC18V JTN1AS-TMP-FDC18V-ND JTN1ASTMPFDC18V |
Operating Temperature | -55°C ~ 85°C |
| Operate Time | 20ms | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Fully | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole |
| Contact Rating (Current) | 30A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 18VDC |
| Coil Type | Non Latching | Coil Resistance | 405 Ohms |
| Coil Power | 800 mW | Coil Current | 44.4mA |
