JS1F-F-24V-F

Panasonic

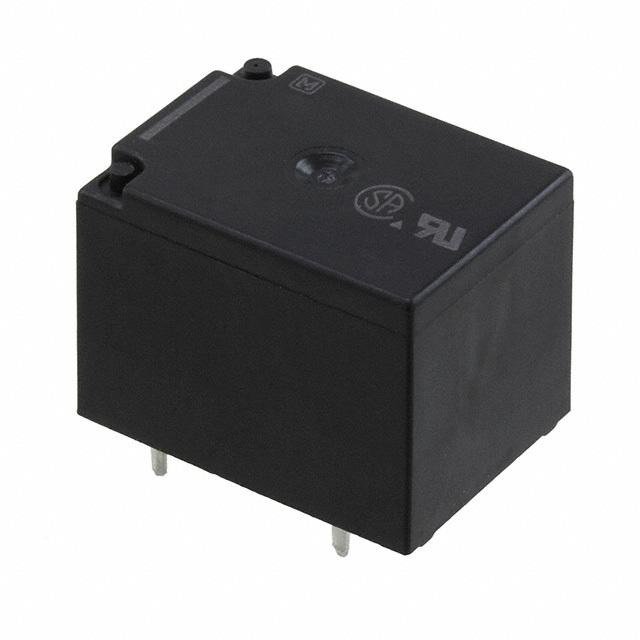

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JS1F-F-24V-F
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPDT 10A 24V
Datasheets:	JS1F-F-24V-F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	82904 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 82904 pcs

Reference Price (In US Dollars)

1 pcs: $0.65

10 pcs: $0.61

25 pcs: $0.543

50 pcs: $0.515

100 pcs: $0.488

300 pcs: $0.434

500 pcs: $0.407

1000 pcs: $0.38

5000 pcs: $0.366

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.65

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JS1F-F-24V-F

Part Number	JS1F-F-24V-F	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPDT 10A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	82904 pcs	Data sheet	JS1F-F-24V-F.pdf
Turn On Voltage (Max)	16.8 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	250VAC, 100VDC - Max
Series	JS	Release Time	10ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-4007-5 JS1F-F-24V-F-ND JS1FF24VF	Operating Temperature	-40°C ~ 105°C
Operate Time	10ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Insulation - Class F, Sealed - Flux Protection
Detailed Description	General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole	Contact Rating (Current)	10A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPDT (1 Form C)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	1.6 kOhms	Coil Power	360 mW
Coil Current	15.0mA
