HL1-HTM-AC12V-F

Panasonic

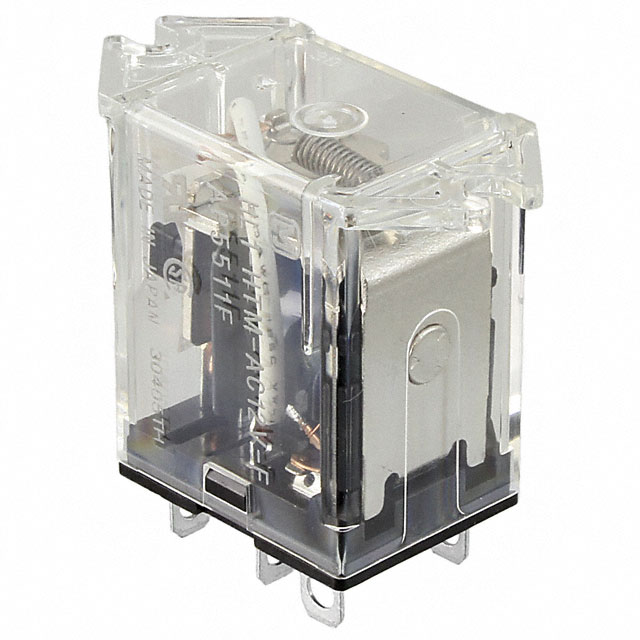

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HL1-HTM-AC12V-F
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPDT 15A 12V
Datasheets:	HL1-HTM-AC12V-F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8506 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8506 pcs

Reference Price (In US Dollars)

20 pcs: $3.701

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.701

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HL1-HTM-AC12V-F

Part Number	HL1-HTM-AC12V-F	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPDT 15A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8506 pcs	Data sheet	HL1-HTM-AC12V-F.pdf
Turn On Voltage (Max)	9.6 VAC	Turn Off Voltage (Min)	3.6 VAC
Termination Style	Quick Connect - 0.187" (4.7mm)	Switching Voltage	125VAC - Nom
Series	HL	Release Time	25ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	255-4016-5 HL1-HTM-AC12V-F-ND HL1HTMAC12VF	Operating Temperature	-50°C ~ 70°C
Operate Time	25ms	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	General Purpose Relay SPDT (1 Form C) 12VAC Coil Chassis Mount
Contact Rating (Current)	15A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	SPDT (1 Form C)	Coil Voltage	12VAC
Coil Type	Non Latching	Coil Power	1.2 VA
Coil Current	100mA
