HEV2AN-P-DC9V

Panasonic

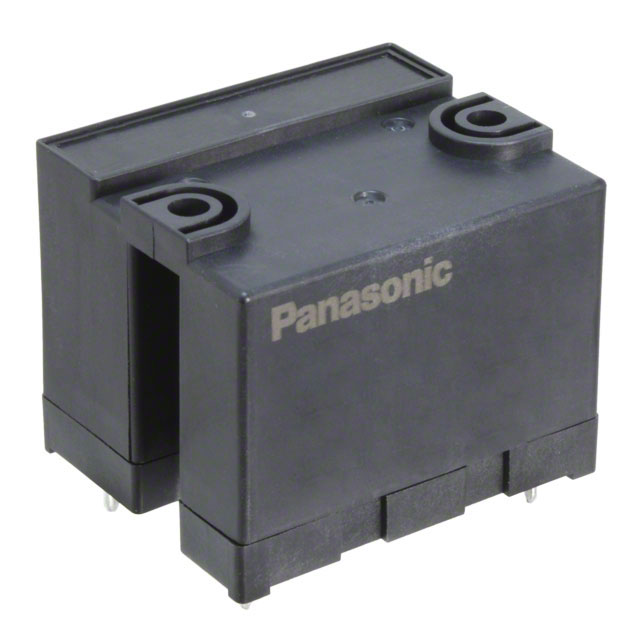

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HEV2AN-P-DC9V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPST 20A 9V
Datasheets:	1.HEV2AN-P-DC9V.pdf 2.HEV2AN-P-DC9V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1124 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1124 pcs

Reference Price (In US Dollars)

50 pcs: $30.33

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$30.33

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HEV2AN-P-DC9V

Part Number	HEV2AN-P-DC9V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPST 20A 9V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1124 pcs	Data sheet	1.HEV2AN-P-DC9V.pdf 2.HEV2AN-P-DC9V.pdf
Turn On Voltage (Max)	6.3 VDC	Turn Off Voltage (Min)	0.45 VDC
Termination Style	PC Pin	Switching Voltage	400VDC - Nom
Series	HE-V	Release Time	10ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	HEV2AN-P-DC9	Operating Temperature	-40°C ~ 55°C
Operate Time	30ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay DPST-NO (2 Form A) 9VDC Coil Through Hole	Contact Rating (Current)	20A
Contact Material	Silver Nickel (AgNi)	Contact Form	DPST-NO (2 Form A)
Coil Voltage	9VDC	Coil Type	Non Latching
Coil Resistance	42 Ohms	Coil Power	1.92 W
Coil Current	213mA
