EXB-H5E684J

Panasonic

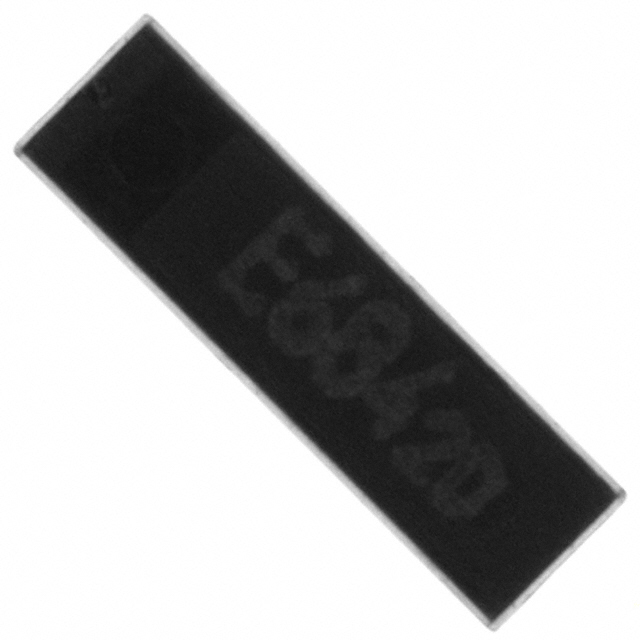

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EXB-H5E684J
Manufacturer/Brand:	Panasonic
Product description	RES ARRAY 4 RES 680K OHM 5SSIP
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5064 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5064 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EXB-H5E684J

Part Number	EXB-H5E684J	Manufacturer	Panasonic
Description	RES ARRAY 4 RES 680K OHM 5SSIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5064 pcs	Data sheet
Tolerance	±5%	Temperature Coefficient	±200ppm/°C
Supplier Device Package	5-SIP	Size / Dimension	0.279" L x 0.087" W (7.08mm x 2.20mm)
Series	EXB	Resistor-Ratio-Drift	-
Resistor Matching Ratio	-	Resistance (Ohms)	680k
Power Per Element	62.5mW	Packaging	Cut Tape (CT)
Package / Case	5-SSIP	Other Names	EXB-H5E684 EXBH5E684 R1684 R1684CT
Operating Temperature	-55°C ~ 125°C	Number of Resistors	4
Number of Pins	5	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.106" (2.69mm)	Detailed Description	680k Ohm ±5% 62.5mW Power Per Element Bussed 4 Resistor Network/Array ±200ppm/°C 5-SSIP
Circuit Type	Bussed	Applications	-
