EHF-FD1540

Panasonic

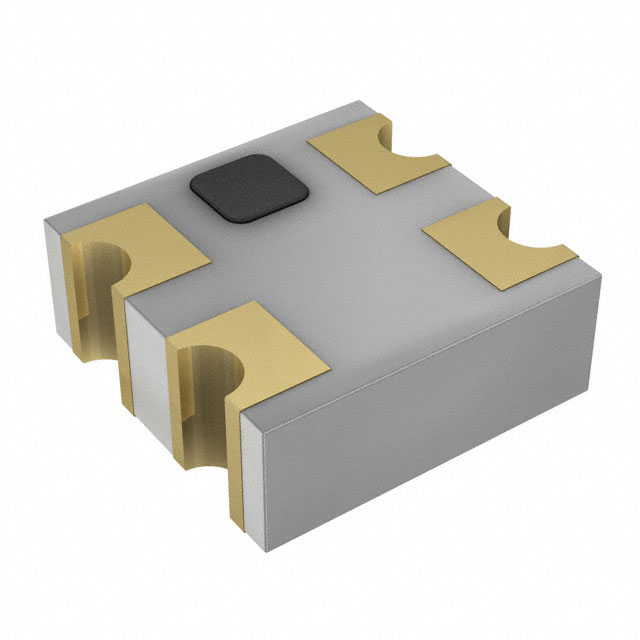

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EHF-FD1540
Manufacturer/Brand:	Panasonic
Product description	RF DIR COUPLER 800MHZ-1GHZ 0603
Datasheets:	EHF-FD1540.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	82708 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 82708 pcs

Reference Price (In US Dollars)

1 pcs: $0.584

10 pcs: $0.529

25 pcs: $0.472

100 pcs: $0.425

250 pcs: $0.377

500 pcs: $0.33

1000 pcs: $0.274

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.584

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EHF-FD1540

Part Number	EHF-FD1540	Manufacturer	Panasonic
Description	RF DIR COUPLER 800MHZ-1GHZ 0603	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	82708 pcs	Data sheet	EHF-FD1540.pdf
Supplier Device Package	0603 (1608 Metric)	Series	-
Return Loss	-	Power - Max	-
Packaging	Cut Tape (CT)	Package / Case	0603 (1608 Metric)
Other Names	P10684 P10684-ND P10684BK P10684CT	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Isolation	25dB
Insertion Loss	0.25dB	Frequency	800MHz ~ 1GHz
Detailed Description	RF Directional Coupler Telecom/Datacom Systems 800MHz ~ 1GHz 17 ± 2dB 0603 (1608 Metric)	Coupling Factor	17 ± 2dB
Coupler Type	Standard	Applications	Telecom/Datacom Systems
