AN44075A-VF

Panasonic

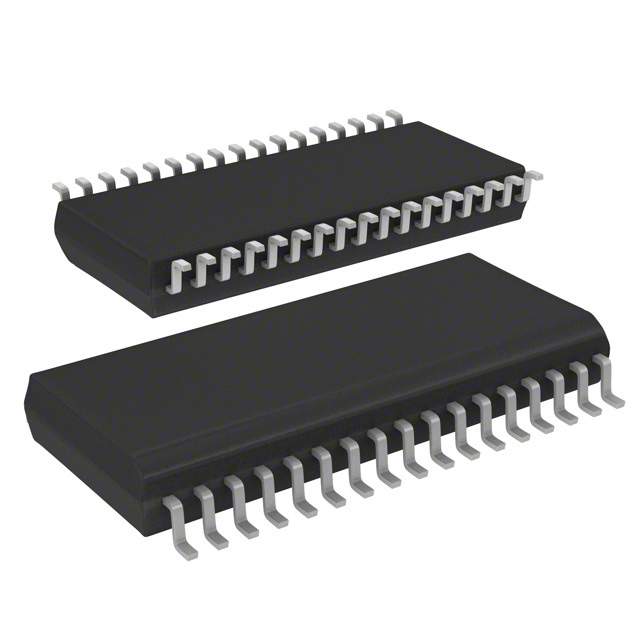

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AN44075A-VF
Manufacturer/Brand:	Panasonic
Product description	IC MOTOR DRIVER PAR 34HSOP
Datasheets:	AN44075A-VF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66986 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 66986 pcs

Reference Price (In US Dollars)

1 pcs: $0.991

10 pcs: $0.894

25 pcs: $0.798

100 pcs: $0.718

250 pcs: $0.638

500 pcs: $0.558

1000 pcs: $0.463

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.991

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AN44075A-VF

Part Number	AN44075A-VF	Manufacturer	Panasonic
Description	IC MOTOR DRIVER PAR 34HSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66986 pcs	Data sheet	AN44075A-VF.pdf
Voltage - Supply	10 V ~ 35 V	Voltage - Load	10 V ~ 35 V
Technology	BiCDMOS	Supplier Device Package	34-HSOP
Step Resolution	-	Series	-
Packaging	Cut Tape (CT)	Package / Case	34-TSOP (0.240", 6.10mm Width) Exposed Pad
Output Configuration	Half Bridge (2)	Other Names	AN44075A-VFCT AN44075AVF
Operating Temperature	-20°C ~ 70°C (TA)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Motor Driver BiCDMOS Parallel 34-HSOP	Current - Output	3A
Base Part Number	AN44075A	Applications	General Purpose
