ALZN1B05W

Panasonic

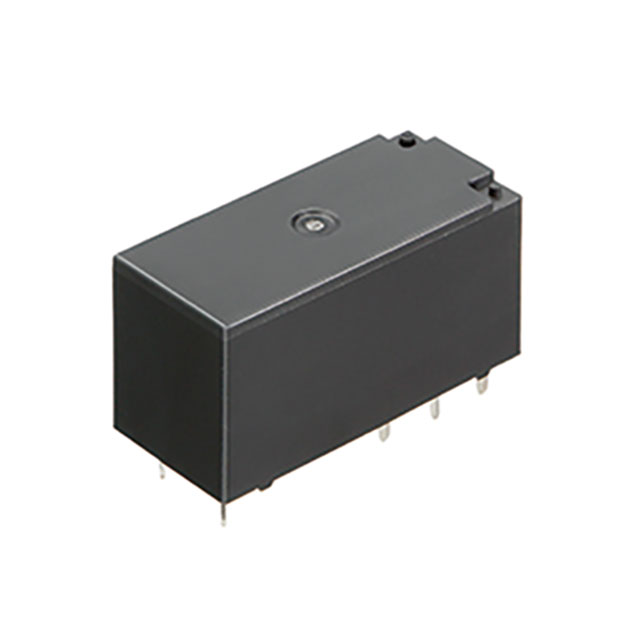

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ALZN1B05W
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPDT 16A 5V
Datasheets:	1.ALZN1B05W.pdf 2.ALZN1B05W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65132 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 65132 pcs

Reference Price (In US Dollars)

1 pcs: $0.961

10 pcs: $0.90

25 pcs: $0.80

50 pcs: $0.76

100 pcs: $0.72

250 pcs: $0.64

500 pcs: $0.60

1000 pcs: $0.56

5000 pcs: $0.54

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.961

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ALZN1B05W

Part Number	ALZN1B05W	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPDT 16A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65132 pcs	Data sheet	1.ALZN1B05W.pdf 2.ALZN1B05W.pdf
Turn On Voltage (Max)	3.5 VDC	Turn Off Voltage (Min)	0.5 VDC
Termination Style	PC Pin	Switching Voltage	440VAC - Max
Series	ALZN	Release Time	5ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-6339	Operating Temperature	-40°C ~ 85°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Insulation - Class B, Sealed - Flux Protection	Detailed Description	General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Contact Rating (Current)	16A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	SPDT (1 Form C)	Coil Voltage	5VDC
Coil Type	Non Latching	Coil Resistance	63 Ohms
Coil Power	400 mW	Coil Current	80.0mA
