ADW1105W

Panasonic

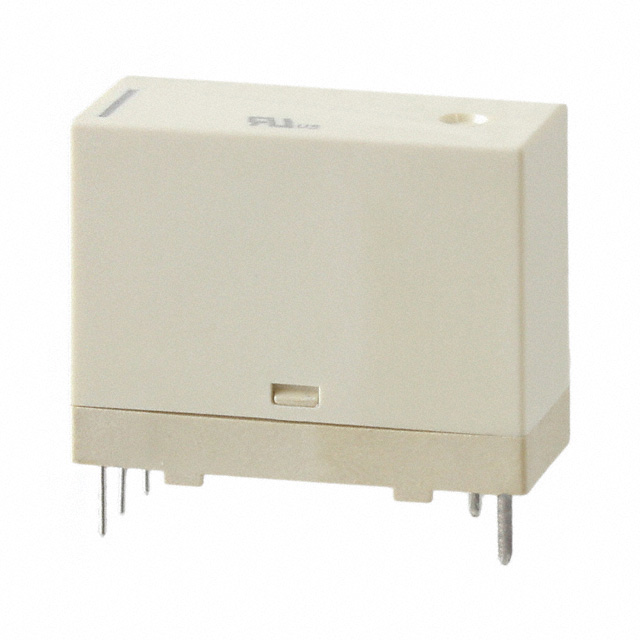

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADW1105W
Manufacturer/Brand:	Panasonic
Product description	RELAY GENERAL PURPOSE SPST 8A 5V
Datasheets:	1.ADW1105W.pdf 2.ADW1105W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20566 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20566 pcs

Reference Price (In US Dollars)

1 pcs: $3.037

10 pcs: $2.846

25 pcs: $2.53

50 pcs: $2.403

100 pcs: $2.277

300 pcs: $2.024

500 pcs: $1.897

1000 pcs: $1.771

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.037

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADW1105W

Part Number	ADW1105W	Manufacturer	Panasonic
Description	RELAY GENERAL PURPOSE SPST 8A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20566 pcs	Data sheet	1.ADW1105W.pdf 2.ADW1105W.pdf
Turn On Voltage (Max)	4 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin	Switching Voltage	250VAC - Max
Series	DW-H	Release Time	15ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-5891 ADW1105W-ND	Operating Temperature	-40°C ~ 85°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole	Contact Rating (Current)	8A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	5VDC	Coil Type	Latching, Single Coil
Coil Resistance	125 Ohms	Coil Power	200 mW
Coil Current	40.0mA
