ABS1514519

Panasonic

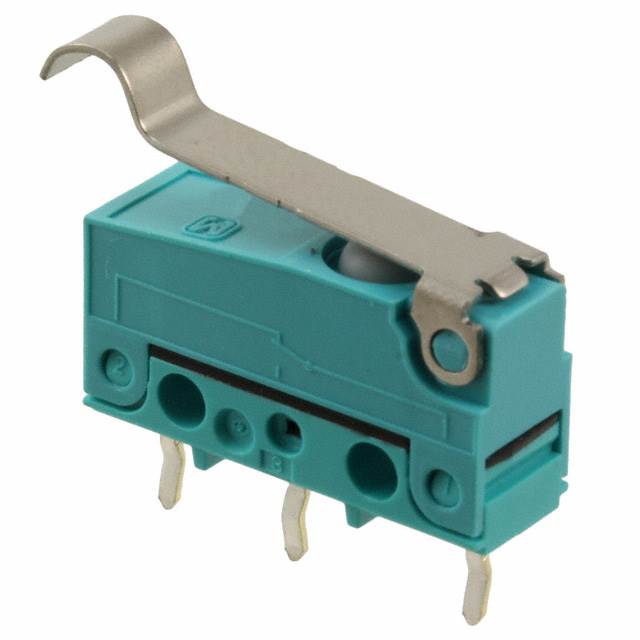

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ABS1514519
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	1.ABS1514519.pdf 2.ABS1514519.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5577 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5577 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ABS1514519

Part Number	ABS1514519	Manufacturer	Panasonic
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5577 pcs	Data sheet	1.ABS1514519.pdf 2.ABS1514519.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	ABS	Release Force	3.500gf
Pretravel	0.110" (2.8mm)	Packaging	Bulk
Overtravel	0.047" (1.2mm)	Other Names	255-3811 ABS1514519-ND
Operating Temperature	-40°C ~ 85°C	Operating Position	0.460" (11.7mm)
Operating Force	55gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	5,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP50 - Dust Protected
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Simulated Roller
