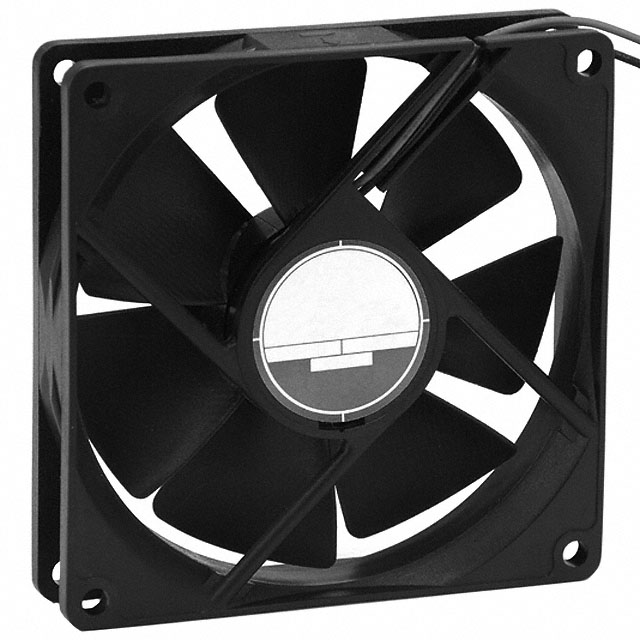

Orion Fans
| Part Number | OD9220-24MB02A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 92X20MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8418 pcs | Data sheet | 1.OD9220-24MB02A.pdf2.OD9220-24MB02A.pdf3.OD9220-24MB02A.pdf4.OD9220-24MB02A.pdf5.OD9220-24MB02A.pdf |
| Width | 20.00mm | Weight | - |
| Voltage Range | 12 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.110 in H2O (27.4 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | OD9220 |
| RPM | 2400 RPM | Other Names | OD9220-24MB02AX OD9220-24MBO2A OD9220-24MBO2A-ND OD922024MB02A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | Noise | 31.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 65000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Sensor |
| Fan Type | Tubeaxial | Current Rating | 0.120A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 28.0 CFM (0.784m³/min) |
