Orion Fans

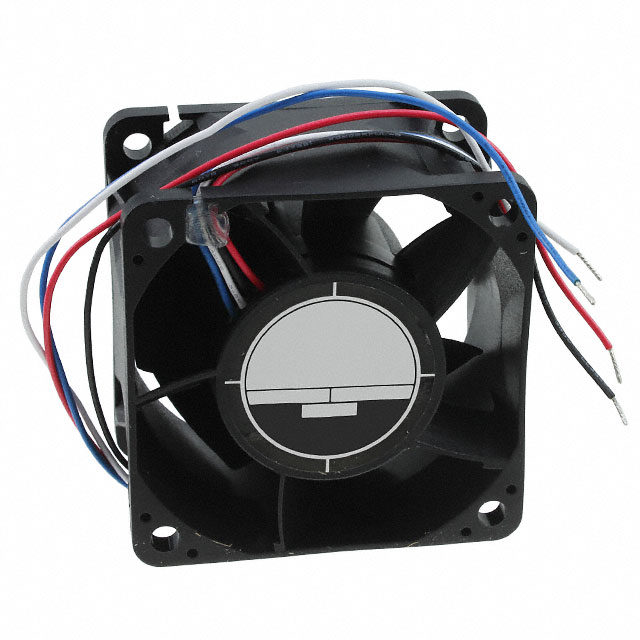

| Part Number | OD6038-24HHBXC10A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 60X38MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8173 pcs | Data sheet | 1.OD6038-24HHBXC10A.pdf2.OD6038-24HHBXC10A.pdf3.OD6038-24HHBXC10A.pdf |
| Width | 38.00mm | Weight | 0.276 lb (125.19g) |
| Voltage Range | 21.6 ~ 26.4VDC | Voltage - Rated | 24VDC |
| Termination | 4 Wire Leads | Static Pressure | 2.950 in H2O (734.8 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | OD6038 |
| RPM | 16000 RPM | Power (Watts) | 30.00W |
| Other Names | 1053-1586 OD6038-24HHBXC10AX OD6038-24HHXC10A OD9238-24HHBXC10A |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Noise | 66.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 1.25A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 86.0 CFM (2.41m³/min) |
