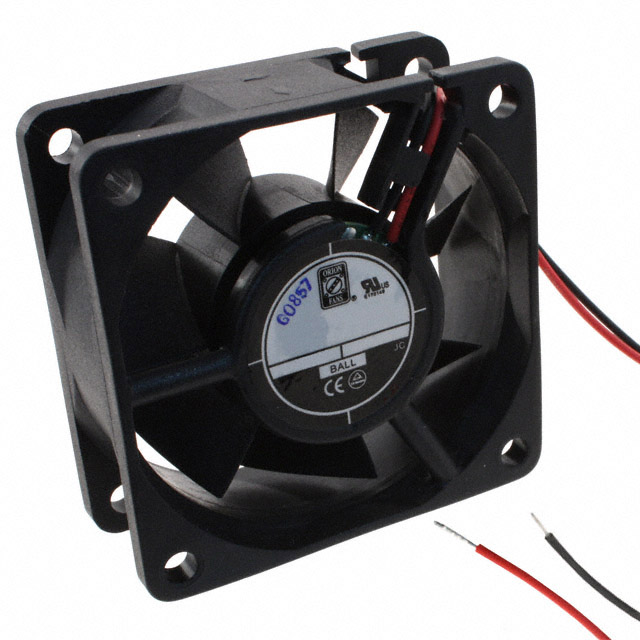

Orion Fans
| Part Number | OD6025-12MB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 60X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11597 pcs | Data sheet | 1.OD6025-12MB.pdf2.OD6025-12MB.pdf3.OD6025-12MB.pdf4.OD6025-12MB.pdf |
| Width | 25.00mm | Weight | - |
| Voltage Range | - | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.110 in H2O (27.4 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | OD6025 |
| RPM | 3500 RPM | Power (Watts) | 1.70W |
| Other Names | 1053-1240 OD6025-12MBX OD602512MB |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Noise | 27.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 60000 Hrs @ 45°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.140A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 18.0 CFM (0.504m³/min) |
