Orion Fans

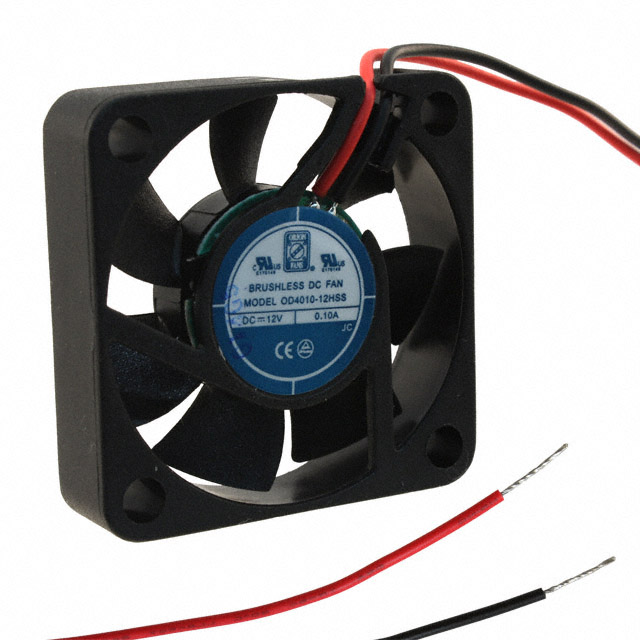

| Part Number | OD4010-12HSS | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 40X10.5MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26532 pcs | Data sheet | 1.OD4010-12HSS.pdf2.OD4010-12HSS.pdf3.OD4010-12HSS.pdf |
| Width | 10.50mm | Weight | - |
| Voltage Range | 7 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.100 in H2O (24.9 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | OD4010 |
| RPM | 6000 RPM | Other Names | 1053-1205 OD4010-12HSSX OD401012HSS |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | Noise | 25.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 50000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.100A |
| Bearing Type | Sealed Sleeve | Approvals | cURus, TUV |
| Air Flow | 6.7 CFM (0.188m³/min) |
