Orion Fans

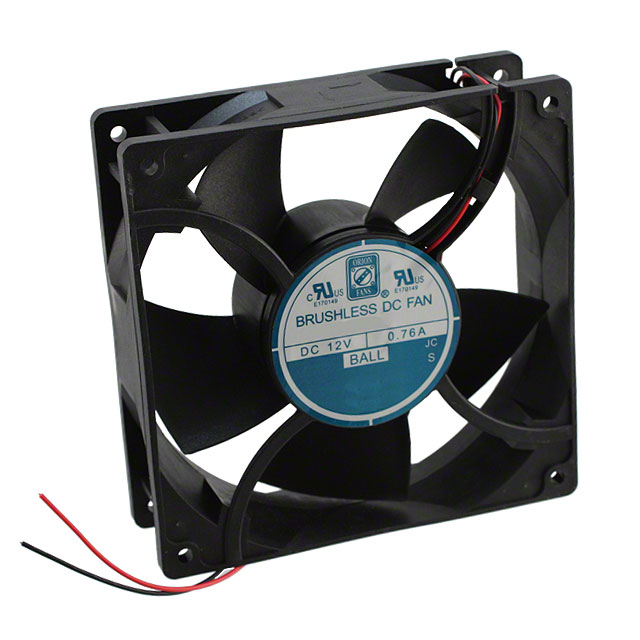

| Part Number | OD127-12HB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 127X38.5MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4473 pcs | Data sheet | 1.OD127-12HB.pdf2.OD127-12HB.pdf3.OD127-12HB.pdf4.OD127-12HB.pdf |
| Width | 38.50mm | Weight | - |
| Voltage Range | 8 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.460 in H2O (114.6 Pa) |
| Size / Dimension | Square - 127mm L x 127mm H | Series | OD127 |
| RPM | 3500 RPM | Other Names | 1053-1168 OD127-12HBX OD12712HB |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) | Noise | 56.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 1.2A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 161.0 CFM (4.51m³/min) |
