Orion Fans

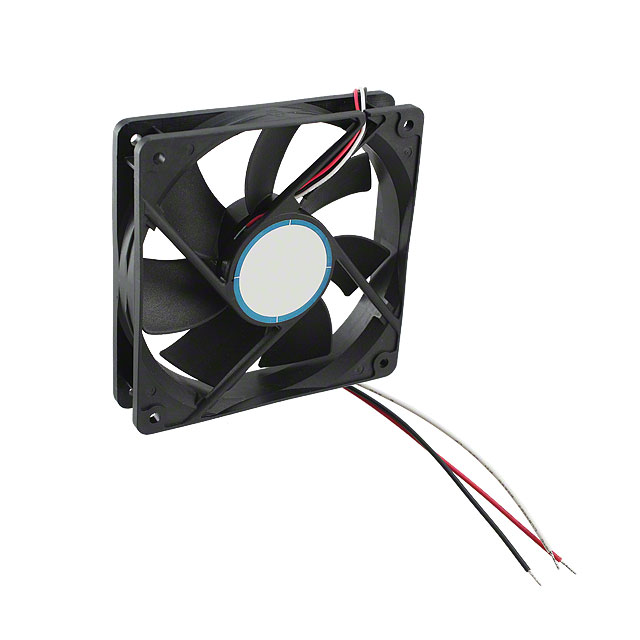

| Part Number | OD1225-12HB01A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 120X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6960 pcs | Data sheet | 1.OD1225-12HB01A.pdf2.OD1225-12HB01A.pdf3.OD1225-12HB01A.pdf4.OD1225-12HB01A.pdf |
| Width | 25.00mm | Weight | - |
| Voltage Range | - | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.140 in H2O (34.9 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | OD1225 |
| RPM | 2200 RPM | Power (Watts) | 5.00W |
| Other Names | 1053-1124 OD1225-12HB01AX OD122512HB01A OD1225PT-12HB01A |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 39.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.370A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 89.0 CFM (2.49m³/min) |
