OA109AP-22-1TB(SF)

Orion FansOrion Fans

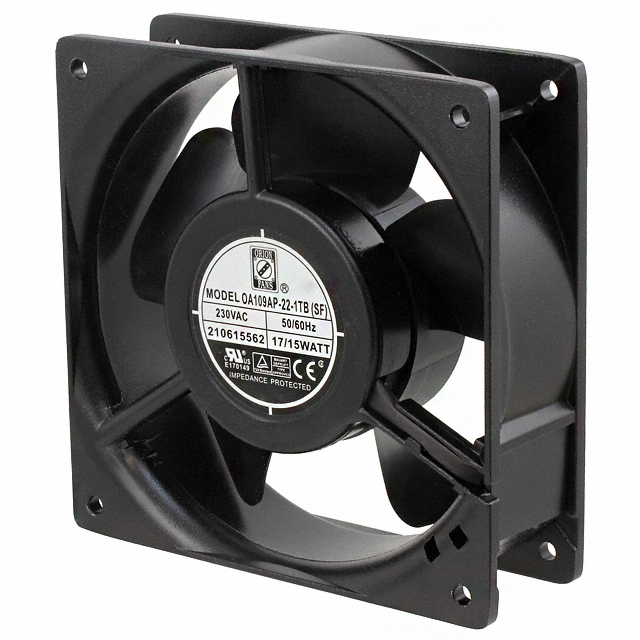

OA109AP-22-1TB(SF) Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: OA109AP-22-1TB(SF)
Manufacturer/Brand: Orion Fans
Product description FAN AXIAL 120X38MM 230VAC TERM
Datasheets: 1.OA109AP-22-1TB(SF).pdf2.OA109AP-22-1TB(SF).pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3713 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3713 pcs
Reference Price (In US Dollars)
1 pcs
$14.229
10 pcs
$12.937
25 pcs
$12.506
100 pcs
$10.781
250 pcs
$10.565
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$14.229

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of OA109AP-22-1TB(SF)

Part Number OA109AP-22-1TB(SF) Manufacturer Orion Fans
Description FAN AXIAL 120X38MM 230VAC TERM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3713 pcs Data sheet 1.OA109AP-22-1TB(SF).pdf2.OA109AP-22-1TB(SF).pdf
Width 38.00mm Weight -
Voltage Range - Voltage - Rated 230VAC
Termination 2 Terminals Static Pressure 0.320 in H2O (79.7 Pa)
Size / Dimension Square - 119.5mm L x 119.5mm H Series OA109
RPM 3100 RPM Power (Watts) 15.00W
Other Names 1053-1556
OA109AP-22-1TB(SF)X
Operating Temperature -4 ~ 158°F (-20 ~ 70°C)
Noise 46.0 dB Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Frame Aluminum Material - Blade Polybutylene Terephthalate (PBT)
Manufacturer Standard Lead Time 15 Weeks Lifetime @ Temp. 40000 Hrs @ 40°C
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Features Salt Fog Rated Fan Type Tubeaxial
Current Rating 0.080A Bearing Type Ball
Approvals cURus Air Flow 106.0 CFM (2.97m³/min)
