OPIA402BTR

Optek Technology / TT Electronics

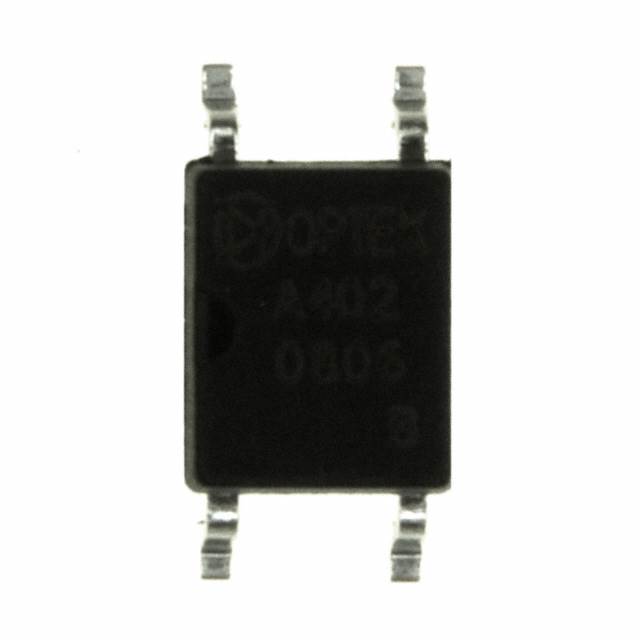

Image may be representation. See specifications for product details.

Product Overview

Part Number:	OPIA402BTR
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISOLATOR 3.75KV TRANS 4-SOP
Datasheets:	OPIA402BTR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5258 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5258 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of OPIA402BTR

Part Number	OPIA402BTR	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISOLATOR 3.75KV TRANS 4-SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5258 pcs	Data sheet	OPIA402BTR.pdf
Voltage - Output (Max)	60V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SOP (2.54mm)
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	365-1415-2
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	AC, DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)	Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	400% @ 1mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
