On-Shore Technology, Inc.
| Part Number | EDSTLZ1550/2 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|

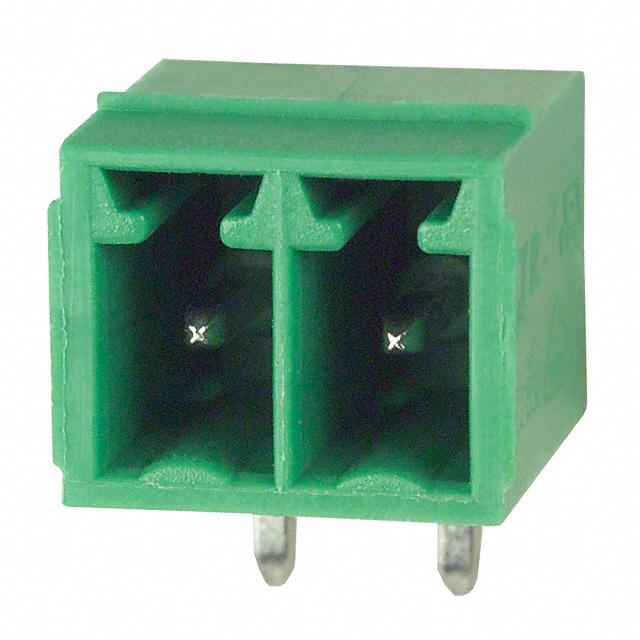

| Description | TERM BLOCK HDR 2POS 90DEG 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 185730 pcs | Data sheet | EDSTLZ1550/2.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | - | Series | EDSTLZ1550 |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | ED1934 EDSTLZ15502 |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Solder |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.276" (7.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Solder |
| Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | - | Contact Material | - |
| Color | - |
