ED3101/12-WD

On-Shore Technology, Inc.

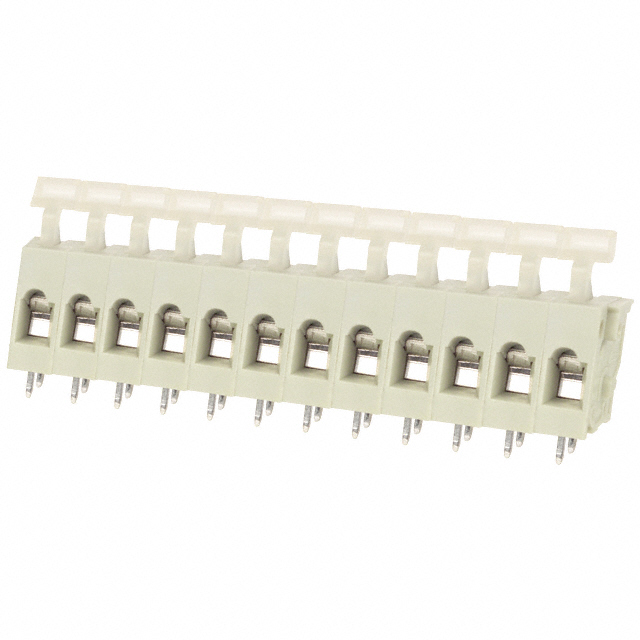

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED3101/12-WD
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 5MM 12POS PCB
Datasheets:	ED3101/12-WD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25465 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25465 pcs

Reference Price (In US Dollars)

50 pcs: $1.385

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.385

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED3101/12-WD

Part Number	ED3101/12-WD	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 5MM 12POS PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25465 pcs	Data sheet	ED3101/12-WD.pdf
Wire Termination	Screwless - Leg Spring, Push-In Spring	Wire Gauge	14-28 AWG
Voltage	300V	Torque - Screw	-
Series	ED3101/WD	Screw Thread	-
Screw Material - Plating	-	Positions Per Level	12
Pitch	0.197" (5.00mm)	Packaging	Bulk
Other Names	ED2303	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Horizontal with Board
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	Interlocking (Side), Lever Actuated
Detailed Description	12 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole	Current	16A
Contact Material - Plating	-	Color	Gray, Slate
Clamp Material - Plating	Steel, Stainless
