On-Shore Technology, Inc.

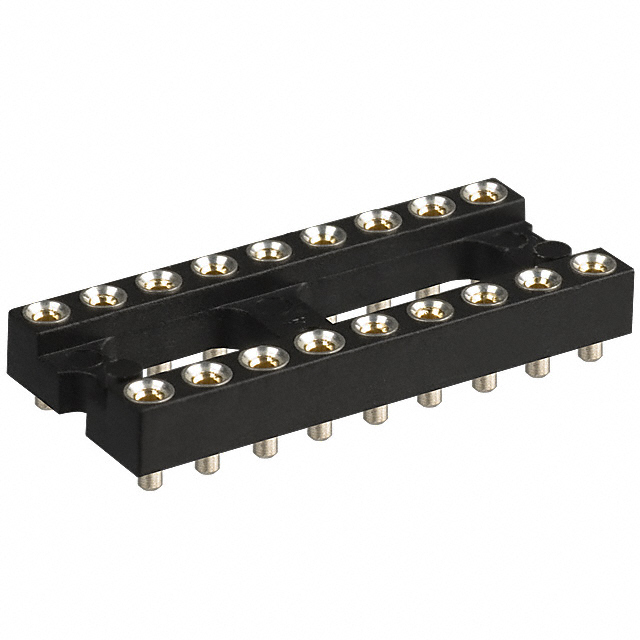

| Part Number | BU180Z-178-HT | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 18POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67530 pcs | Data sheet | BU180Z-178-HT.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing | Termination Post Length | 0.059" (1.50mm) |
| Termination | Solder | Series | BU-178HT |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | BU180Z-178HT BU180Z178HT ED2205 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 18 (2 x 9) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Open Frame | Current Rating | 1A |
| Contact Resistance | 7 mOhm | Contact Material - Post | Brass |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Post | Copper |
| Contact Finish - Mating | Gold |
