Omron

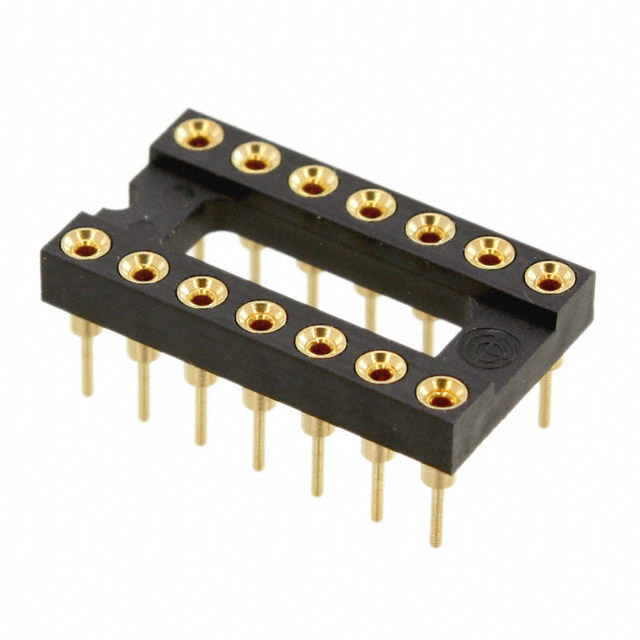

| Part Number | XR2A-1401-N | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82397 pcs | Data sheet | XR2A-1401-N.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing | Termination Post Length | 0.126" (3.20mm) |
| Termination | Solder | Series | XR2 |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | OR1085 XR2A-1401-N-ND XR2A1401N XR2A1401NNC |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Open Frame | Current Rating | 1A |
| Contact Resistance | 20 mOhm | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 29.5µin (0.75µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
