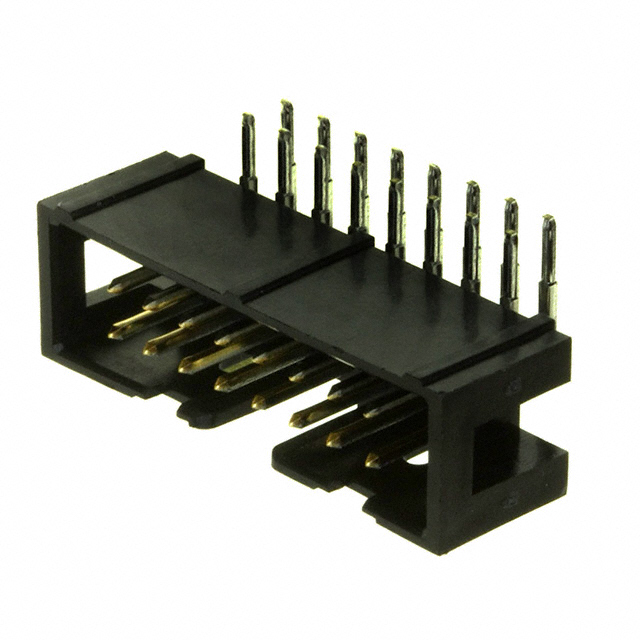

XG4C-1634

Omron

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XG4C-1634
Manufacturer/Brand:	Omron
Product description	CONN PLUG 16POS 3A RT ANGL DIP
Datasheets:	XG4C-1634.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74379 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74379 pcs

Reference Price (In US Dollars)

1 pcs: $0.498

10 pcs: $0.453

110 pcs: $0.388

550 pcs: $0.323

1100 pcs: $0.277

5060 pcs: $0.267

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.498

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XG4C-1634

Part Number	XG4C-1634	Manufacturer	Omron
Description	CONN PLUG 16POS 3A RT ANGL DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74379 pcs	Data sheet	XG4C-1634.pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	XG4	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	OR957 XG4C1634 XG4C1634-ND
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.323" (8.20mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass, Nickel	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	5.90µin (0.150µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
