Omron

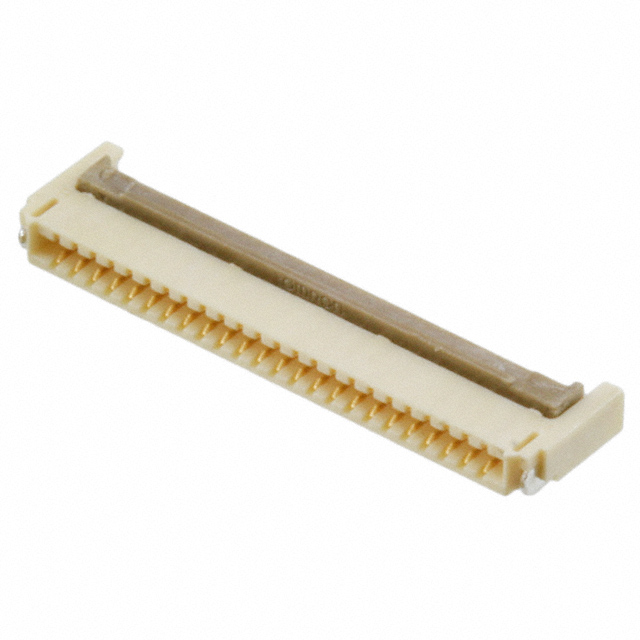

| Part Number | XF2W26151AR100BYOMZ | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 26POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4859 pcs | Data sheet | 1.XF2W26151AR100BYOMZ.pdf2.XF2W26151AR100BYOMZ.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF2W | Pitch | 0.020" (0.50mm) |
| Packaging | Bulk | Other Names | XF2W-2615-1A-R100 BY OMZ |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 26 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.044" (1.12mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 26 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Brown |
