Omron

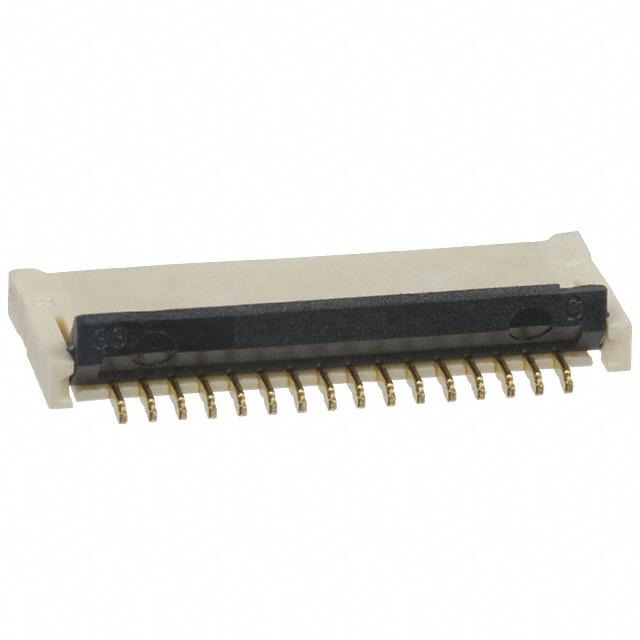

| Part Number | XF2B-3345-31A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 33POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37339 pcs | Data sheet | XF2B-3345-31A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF2B | Pitch | 0.012" (0.30mm) |
| Packaging | Cut Tape (CT) | Other Names | OR697CT |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 33 |
| Mounting Type | Surface Mount, Right Angle | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.083" (2.10mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 33 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Straight |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Black |
